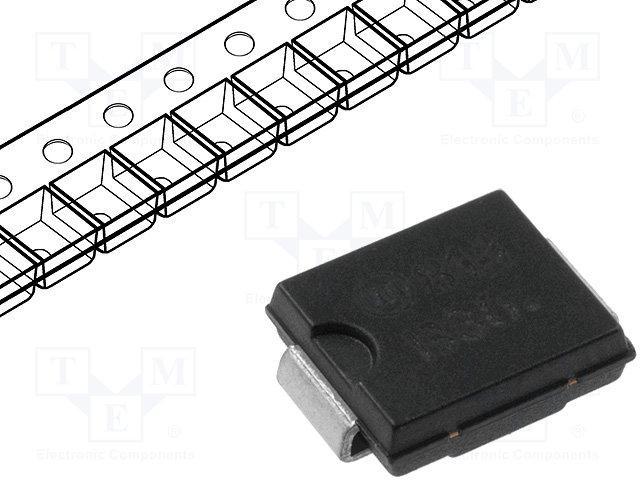

TPSMC13A
Manufacturer
Littelfuse
Description
TPSMC Series - Surface Mount, 1500W TVS Diode-AEC-Q101 Qualified, 11.1V, 18.2V, DO-214AB, RoHS
Datasheet
DownloadProduct Attributes
Type
Breakdown Voltage
Clamping Voltage
Composition
Height
Length
Lifecycle Status
Max Breakdown Voltage
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Max Surge Current
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Unidirectional Channels
Packaging
Peak Pulse Current
Peak Pulse Power
Polarity
Power Line Protection
Reverse Standoff Voltage
Reverse Voltage
RoHS
Termination
Test Current
Weight
Width
Working Voltage
Description
13.7 V
18.2 V
Zener
2.62 mm
7.11 mm
Production (Last Updated: 5 years ago)
13.7 V
150 °C
1.5 kW
1 µA
83.5 A
12.4 V
-55 °C
Surface Mount
1
Tape & Reel (TR)
83.5 A
1.5 kW
Unidirectional
No
11.1 V
11.1 V
Compliant
SMD/SMT
1 mA
210.013267 mg
6.22 mm
3.5 V
₹119.86
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹119.86
₹119.86
10
₹75.21
₹752.13
25
₹75.16
₹1878.95
50
₹75.18
₹3758.82
100
₹49.50
₹4950.15
500
₹38.46
₹19227.81
1000
₹34.90
₹34899.93
