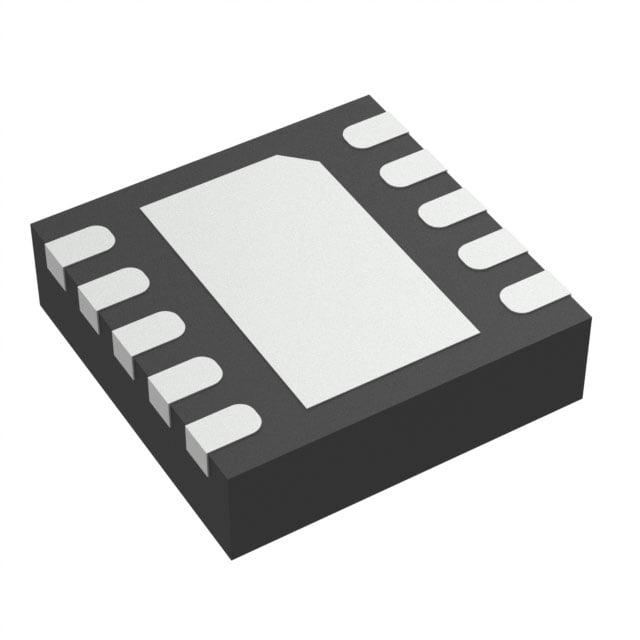

TS5A22362DRCR
Manufacturer
Texas Instruments
Description
Analogue Switch ICs 0.65-Ohm Dual SPDT A nalog Sw
Datasheet
DownloadProduct Attributes
Type
Switch Circuit
Multiplexer/Demultiplexer Circuit
Number of Circuits
On-State Resistance
Channel Resistance Matching
Voltage - Supply, Single (V+)
Switch Time (Ton, Toff) (Max)
-3db Bandwidth
Charge Injection
Channel Capacitance (CS(off), CD(off))
Current - Leakage (IS(off)) (Max)
Crosstalk
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
SPDT
2:1
2
740mOhm
40mOhm
2.3V ~ 5.5V
80ns, 70ns
18.3MHz
10pC
70pF
50nA
-78dB @ 100kHz
-40°C ~ 85°C (TA)
Surface Mount
10-VFDFN Exposed Pad
10-VSON (3x3)
₹147.60
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹147.60
₹147.60
10
₹106.60
₹1066.00
25
₹96.47
₹2411.82
50
₹96.45
₹4822.63
100
₹85.26
₹8525.95
500
₹76.68
₹38341.15
1000
₹75.12
₹75117.13
Product Attributes
Type
Switch Circuit
Multiplexer/Demultiplexer Circuit
Number of Circuits
On-State Resistance
Channel Resistance Matching
Voltage - Supply, Single (V+)
Switch Time (Ton, Toff) (Max)
-3db Bandwidth
Charge Injection
Channel Capacitance (CS(off), CD(off))
Current - Leakage (IS(off)) (Max)
Crosstalk
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
SPDT
2:1
2
740mOhm
40mOhm
2.3V ~ 5.5V
80ns, 70ns
18.3MHz
10pC
70pF
50nA
-78dB @ 100kHz
-40°C ~ 85°C (TA)
Surface Mount
10-VFDFN Exposed Pad
10-VSON (3x3)
