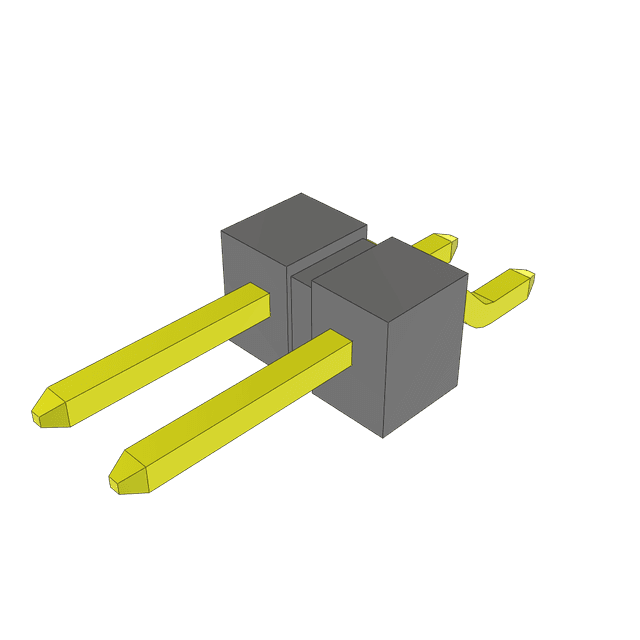

TSM-102-01-L-SH
Manufacturer
Samtec
Description
Pin Header, Board-to-Board, 2.54 mm, 1 Rows, 2 Contacts, Surface Mount Right Angle, TSM Series
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Mating Length
Contact Plating
Current Rating
Depth
Gender
Housing Color
Housing Material
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Pitch
Radiation Hardening
REACH SVHC
RoHS
Termination
Description
Black
Male Pin
Bronze
5.842 mm
Gold
7 A
10.92 mm
Male
Black
Polymer
Lead Free
5.08 mm
Production (Last Updated: 3 years ago)
PRODUCTION (Last Updated: 3 years ago)
7 A
125 °C
475 V
-55 °C
Surface Mount
2
2
1
Right Angle
2.54 mm
No
No
Compliant
Solder
In Stock
Quantity
MOQ : 2
Per Unit Price
₹52.46
Total Price
₹104.93
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹104.93
₹104.93
10
₹52.20
₹521.96
25
₹52.25
₹1306.23
50
₹40.53
₹2026.49
100
₹33.06
₹3306.05
500
₹27.73
₹13865.30
1000
₹21.33
₹21331.02
