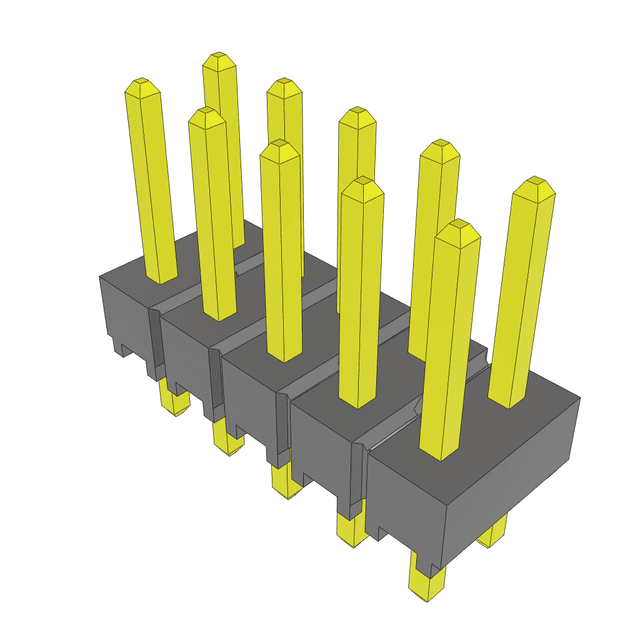

TSW-105-07-F-D
Manufacturer
Samtec
Description
Pin Header, Board-to-Board, 2.54 mm, 2 Rows, 10 Contacts, Through Hole, TSW Series
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Mating Length
Contact Plating
Depth
Gender
Housing Color
Housing Material
Lead Pitch
Lifecycle Status
Manufacturer Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Positions
Number of Rows
Orientation
Pitch
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Termination
Description
Black
Male Pin
Bronze
5.842 mm
Gold
5.08 mm
Male
Black
Polyester
2.54 mm
Production (Last Updated: 3 years ago)
PRODUCTION (Last Updated: 3 years ago)
7.6 A
125 °C
550 V
-55 °C
Through Hole
10
10
10
2
Straight
2.54 mm
No
No SVHC
Compliant
2.54 mm
Solder
₹65.88
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹44.34
₹443.42
25
₹44.34
₹1108.54
50
₹44.34
₹2217.09
100
₹44.34
₹4434.18
500
₹40.28
₹20140.06
1000
₹34.18
₹34177.08
