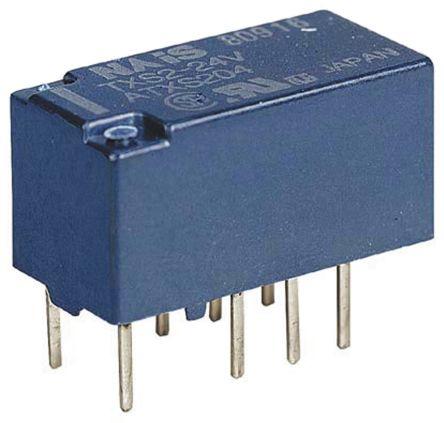

TXS2-24V
Manufacturer
Panasonic
Description
Electromechanical Relay 24VDC 8.229KOhm 1A DPDT (15x7.4x8.2)mm THT Ultra High Sensitivity Relay
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Approvals
Case/Package
Coil Current
Coil Power
Coil Resistance
Coil Type
Coil Voltage (DC)
Contact Current Rating
Contact Material
Contact Plating
Contact Resistance
Current Rating
Depth
Electrical Life
Height
Insertion Loss (dB)
Insulation Resistance
Lead Free
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (DC)
Min Operating Temperature
Mount
Number of Contacts
Number of Pins
Number of Terminals
Operate Time
Power Consumption
Power Rating
Radiation Hardening
REACH SVHC
Relay Type
Release Time
Response Time
RoHS
Switching Current
Termination
Throw Configuration
Voltage Rating (DC)
Weight
Width
Description
70 °C
CSA, UL
DIP
2 mA
70 mW
8.229 kΩ
Non-Latching
19.2 V
1 A
Silver
Gold
100 mΩ
1 A
7.4 mm
200 kcycles
8.2 mm
0.8 dB
1 GΩ
Lead Free
15 mm
Production (Last Updated: 7 months ago)
1 A
70 °C
110 V
-40 °C
PCB, Through Hole
2
8
8
5 ms
70 mW
30 W
No
Yes
General Purpose
5 ms
5 ms
Compliant
1 A
PC Pin
DPDT
110 V
2 g
7.4 mm
₹572.79
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹572.79
₹572.79
10
₹514.96
₹5149.62
25
₹341.33
₹8533.29
50
₹341.33
₹17066.58
100
₹341.32
₹34132.25
500
₹323.77
₹161883.63
1000
₹289.74
₹289743.90
