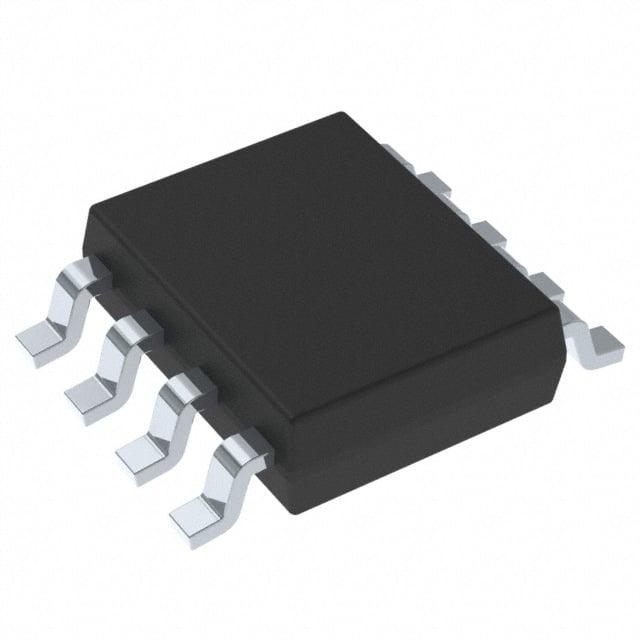

UCC27211DDAR
Manufacturer
Texas Instruments
Description
Gate Drivers 4A Peak Hi Freq High /Low-Side Driver A A 595-UCC27211DDA
Datasheet
DownloadProduct Attributes
Type
DigiKey Programmable
Driven Configuration
Channel Type
Number of Drivers
Gate Type
Voltage
Logic Voltage - VIL, VIH
Current - Peak Output (Source, Sink)
Input
High Side Voltage - Max (Bootstrap)
Rise / Fall Time (Typ)
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Not Verified
Half-Bridge
Independent
2
MOSFET (N-Channel)
8V ~ 17V
1.3V, 2.8V
4A, 4A
Non-Inverting
120 V
7.2ns, 5.5ns
-40°C ~ 140°C (TJ)
Surface Mount
8-PowerSOIC (0.154", 3.90mm Width)
8-SO PowerPad
₹279.82
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹279.82
₹279.82
10
₹206.64
₹2066.40
25
₹188.56
₹4713.98
50
₹188.58
₹9428.98
100
₹168.62
₹16862.28
500
₹190.28
₹95140.50
1000
₹190.28
₹190281.00
Product Attributes
Type
DigiKey Programmable
Driven Configuration
Channel Type
Number of Drivers
Gate Type
Voltage
Logic Voltage - VIL, VIH
Current - Peak Output (Source, Sink)
Input
High Side Voltage - Max (Bootstrap)
Rise / Fall Time (Typ)
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
Not Verified
Half-Bridge
Independent
2
MOSFET (N-Channel)
8V ~ 17V
1.3V, 2.8V
4A, 4A
Non-Inverting
120 V
7.2ns, 5.5ns
-40°C ~ 140°C (TJ)
Surface Mount
8-PowerSOIC (0.154", 3.90mm Width)
8-SO PowerPad
