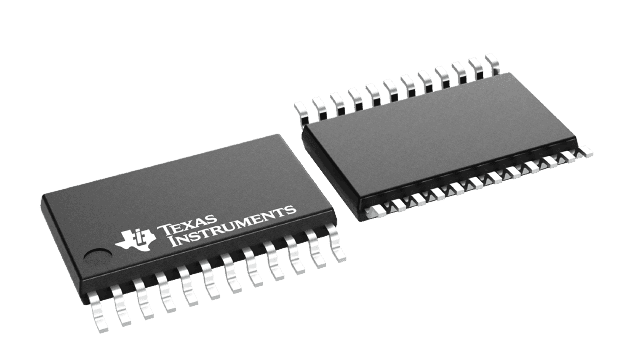

UCC28950PWR
Manufacturer
Texas Instruments
Description
Soft Sw PWM Cntrlr 1-OUT Phase Shifted Full Bridge Controller 12V 1MHz 24-Pin TSSOP T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Duty Cycle
Fall Time
Frequency
Height
Isolation
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Duty Cycle
Max Frequency
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Nominal Input Voltage
Number of Outputs
Number of Pins
Operating Supply Current
Operating Supply Voltage
Output Current
Output Type
Output Voltage
Radiation Hardening
Rise Time
RoHS
Schedule B
Switching Frequency
Thickness
Topology
Width
Description
TSSOP
97 %
7 ns
1 MHz
1.2 mm
Non-Isolated
Lead Free
7.8 mm
Production (Last Updated: 2 days ago)
ACTIVE (Last Updated: 2 days ago)
97 %
1 MHz
125 °C
17 V
-40 °C
3.6 V
1
24
5 mA
12 V
20 mA
Fixed
5 V
No
9 ns
Compliant
8542390000
1 MHz
1 mm
Full-Bridge
4.4 mm
₹618.54
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹618.54
₹618.54
10
₹475.53
₹4755.26
25
₹439.64
₹10990.98
50
₹439.64
₹21981.96
100
₹400.18
₹40018.44
500
₹370.05
₹185023.07
1000
₹360.29
₹360290.40
