UHE2A470MPD
Manufacturer
Nichicon
Description

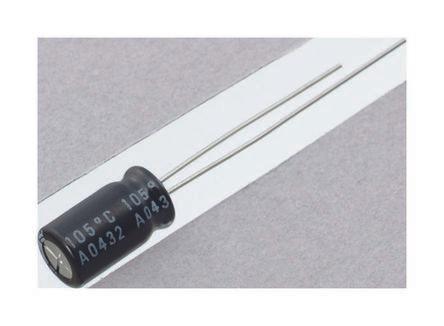

Radial Can ALUMINUM ELECTROLYTIC CAPACITOR UHE 100V 47muF 20% 0.394Dia 10.00mm
Datasheet
DownloadProduct Attributes
Type
Capacitance
Case/Package
Diameter
Dielectric Material
Dissipation Factor
ESR (Equivalent Series Resistance)
Height
Height - Seated (Max)
Impedance
Lead Diameter
Lead Free
Lead Pitch
Leakage Current
Length
Life (Hours)
Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Packaging
Polarity
Radiation Hardening
Ripple Current
Ripple Current (AC)
RoHS
Schedule B
Termination
Tolerance
Voltage
Voltage Rating
Voltage Rating (DC)
Description
47 µF
Radial
10 mm
Aluminium
0.08 %
1.8 Ω
12.5 mm
12.4968 mm
430 mΩ
600 µm
Lead Free
5 mm
47 µA
12.5 mm
7000 hours
Production (Last Updated: 4 years ago)
105 °C
-40 °C
Through Hole
Bulk
Polar
No
325 mA
325 mA
Compliant
8532220020, 8532220020|8532220020|8532220020|8532220020|8532220020
Radial
20 %
100 V
100 V
100 V
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹57.78
Total Price
₹115.57
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹114.69
₹114.69
10
₹25.41
₹254.07
25
₹25.39
₹634.74
50
₹25.39
₹1269.49
100
₹22.56
₹2255.78
500
₹18.70
₹9351.32
1000
₹17.09
₹17085.57
Product Attributes
Type
Capacitance
Case/Package
Diameter
Dielectric Material
Dissipation Factor
ESR (Equivalent Series Resistance)
Height
Height - Seated (Max)
Impedance
Lead Diameter
Lead Free
Lead Pitch
Leakage Current
Length
Life (Hours)
Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Packaging
Polarity
Radiation Hardening
Ripple Current
Ripple Current (AC)
RoHS
Schedule B
Termination
Tolerance
Voltage
Voltage Rating
Voltage Rating (DC)
Description
47 µF
Radial
10 mm
Aluminium
0.08 %
1.8 Ω
12.5 mm
12.4968 mm
430 mΩ
600 µm
Lead Free
5 mm
47 µA
12.5 mm
7000 hours
Production (Last Updated: 4 years ago)
105 °C
-40 °C
Through Hole
Bulk
Polar
No
325 mA
325 mA
Compliant
8532220020, 8532220020|8532220020|8532220020|8532220020|8532220020
Radial
20 %
100 V
100 V
100 V
