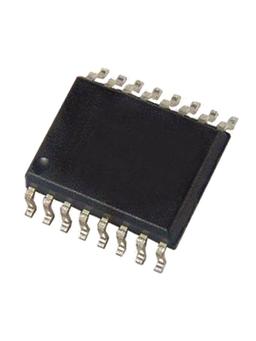

ULN2004AD
Manufacturer
Texas Instruments
Description
TRANS 7NPN DARL 50V 0.5A 16SOIC Power Switch/Driver 1: 1 NPN 500mA 16-SOIC
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Case/Package
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Contact Plating
Current Rating
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Collector Current
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Drivers
Number of Elements
Number of Outputs
Number of Pins
Number of Terminals
Output Current
Output Voltage
Polarity
Propagation Delay
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Thickness
Voltage Rating (DC)
Weight
Width
Description
70 °C
SOIC
50 V
1.1 V
50 V
Gold
500 mA
1.75 mm
Lead Free
9.9 mm
Obsolete (Last Updated: 1 week ago)
OBSOLETE (Last Updated: 1 week ago)
500 mA
125 °C
70 °C
950 mW
50 V
-20 °C
0 V
Surface Mount
7
7
7
16
16
500 mA
50 V
NPN
250 ns
No
No
Compliant
8541290080, 8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
1.58 mm
50 V
141.690917 mg
3.91 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹130.27
Total Price
₹130.27
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹130.27
₹130.27
10
₹91.28
₹912.77
25
₹91.28
₹2281.92
50
₹74.28
₹3714.22
100
₹74.28
₹7428.45
500
₹61.92
₹30961.92
1000
₹43.98
₹43982.71
