UPM1H121MPD6
Manufacturer
Nichicon
Description

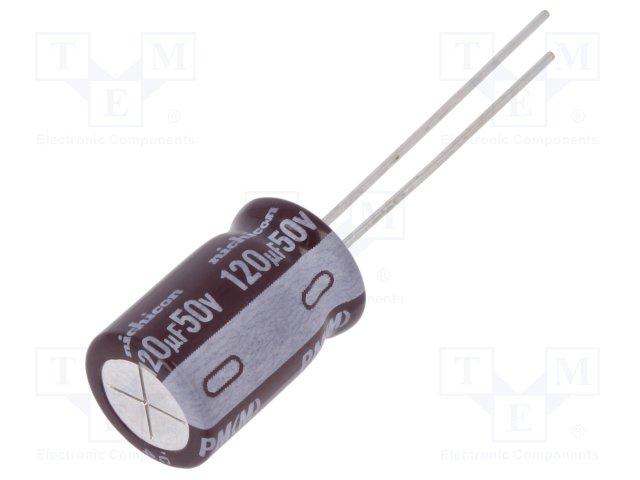

Capacitor Aluminum Electrolytic Cap120uF 50V 20% Radial 10X15 LS 5mm | Nichicon UPM1H121MPD6
Datasheet
DownloadProduct Attributes
Type
Capacitance
Case/Package
China RoHS
Diameter
Dissipation Factor
Height
Height - Seated (Max)
Impedance
Lead Diameter
Lead Free
Lead Pitch
Leakage Current
Length
Life (Hours)
Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Number of Terminals
Polarity
Radiation Hardening
REACH SVHC
Ripple Current
Ripple Current (AC)
RoHS
Terminal Pitch
Termination
Tolerance
Voltage
Voltage Rating
Voltage Rating (DC)
Description
120 µF
Radial
Compliant
10 mm
0.1 %
15 mm
16.9926 mm
130 mΩ
600 µm
Lead Free
5 mm
180 µA
16 mm
5000 hours
Production (Last Updated: 9 months ago)
105 °C
-55 °C
Through Hole
2
Polar
No
No
435 mA
510 mA
Compliant
5 mm
Radial
20 %
50 V
50 V
50 V
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹62.34
Total Price
₹124.67
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹125.56
₹125.56
10
₹43.77
₹437.68
25
₹43.80
₹1095.08
50
₹43.80
₹2190.16
100
₹35.19
₹3519.12
Product Attributes
Type
Capacitance
Case/Package
China RoHS
Diameter
Dissipation Factor
Height
Height - Seated (Max)
Impedance
Lead Diameter
Lead Free
Lead Pitch
Leakage Current
Length
Life (Hours)
Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Number of Terminals
Polarity
Radiation Hardening
REACH SVHC
Ripple Current
Ripple Current (AC)
RoHS
Terminal Pitch
Termination
Tolerance
Voltage
Voltage Rating
Voltage Rating (DC)
Description
120 µF
Radial
Compliant
10 mm
0.1 %
15 mm
16.9926 mm
130 mΩ
600 µm
Lead Free
5 mm
180 µA
16 mm
5000 hours
Production (Last Updated: 9 months ago)
105 °C
-55 °C
Through Hole
2
Polar
No
No
435 mA
510 mA
Compliant
5 mm
Radial
20 %
50 V
50 V
50 V
