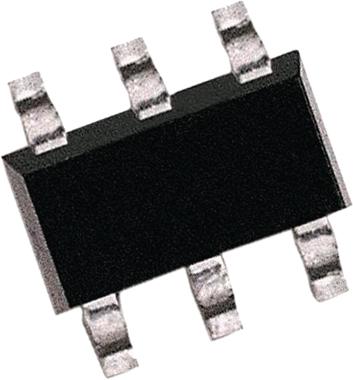

USBUF01W6
Manufacturer
STMicroelectronics
Description
2-line EMI filter and ESD protection with R pull-up, for USB interfaces
Datasheet
DownloadProduct Attributes
Type
Attenuation Value
Bandwidth
Breakdown Voltage
Capacitance
Case/Package
Clamping Voltage
Depth
ESD Protection
Frequency
Height
Lead Free
Length
Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Min Breakdown Voltage
Min Operating Temperature
Mount
Number of Channels
Number of Lines
Number of Pins
Packaging
Polarity
Radiation Hardening
REACH SVHC
RoHS
Termination
Width
Description
-28 dB
80 MHz
6 V
47 pF
SOT-363
6.8 V
2.2 mm
Yes
1 GHz
1.1 mm
Lead Free
2.4 mm
Production (Last Updated: 5 years ago)
150 °C
125 °C
6.1 V
-40 °C
Surface Mount
2
2
6

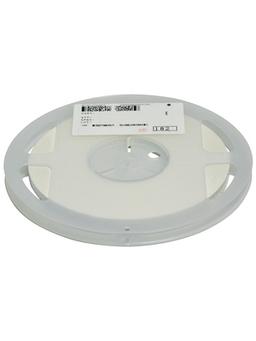

Tape and Reel
Unidirectional
No
No
Compliant
Gull Wing
1.2446 mm
₹35.38
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹21.94
₹219.38
25
₹21.94
₹548.46
50
₹21.94
₹1096.91
100
₹19.54
₹1953.94
500
₹18.29
₹9145.96
1000
₹17.34
₹17344.34
