UWD1E471MCL1GS
Manufacturer
Nichicon
Description

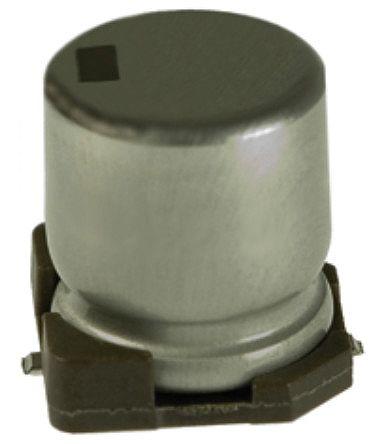

Radial Can - SMD ALUMINUM ELECTROLYTIC CAPACITOR UWD 25V 470muF 20% 0.394Dia 10.00mm
Datasheet
DownloadProduct Attributes
Type
Capacitance
Case/Package
Contact Plating
Diameter
Dissipation Factor
Features
Height
Height - Seated (Max)
Impedance
Lead Free
Lead Pitch
Leakage Current
Length
Life (Hours)
Lifecycle Status
Material
Max Operating Temperature
Min Operating Temperature
Mount
Packaging
Polarity
Radiation Hardening
Ripple Current
Ripple Current (AC)
RoHS
Schedule B
Termination
Tolerance
Voltage
Voltage Rating
Voltage Rating (DC)
Description
470 µF
SMD/SMT
Tin
10 mm
0.16 %
General Purpose
10 mm
10.0076 mm
90 mΩ
Lead Free
4.5 mm
52.8 µA
10 mm
5000 hours
Production (Last Updated: 4 years ago)
Aluminium
105 °C
-55 °C
Surface Mount
Tape & Reel
Polar
No
670 mA
670 mA
Compliant
8532220020, 8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|85
SMD/SMT
20 %
25 V
25 V
25 V
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹79.40
Total Price
₹158.80
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹158.80
₹158.80
10
₹42.70
₹426.99
25
₹42.66
₹1066.58
50
₹41.78
₹2089.05
100
₹37.51
₹3751.11
500
₹30.18
₹15090.03
1000
₹27.87
₹27867.82
Product Attributes
Type
Capacitance
Case/Package
Contact Plating
Diameter
Dissipation Factor
Features
Height
Height - Seated (Max)
Impedance
Lead Free
Lead Pitch
Leakage Current
Length
Life (Hours)
Lifecycle Status
Material
Max Operating Temperature
Min Operating Temperature
Mount
Packaging
Polarity
Radiation Hardening
Ripple Current
Ripple Current (AC)
RoHS
Schedule B
Termination
Tolerance
Voltage
Voltage Rating
Voltage Rating (DC)
Description
470 µF
SMD/SMT
Tin
10 mm
0.16 %
General Purpose
10 mm
10.0076 mm
90 mΩ
Lead Free
4.5 mm
52.8 µA
10 mm
5000 hours
Production (Last Updated: 4 years ago)
Aluminium
105 °C
-55 °C
Surface Mount
Tape & Reel
Polar
No
670 mA
670 mA
Compliant
8532220020, 8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|8532220020|85
SMD/SMT
20 %
25 V
25 V
25 V
