UWZ1H100MCL1GB
Manufacturer
Nichicon
Description

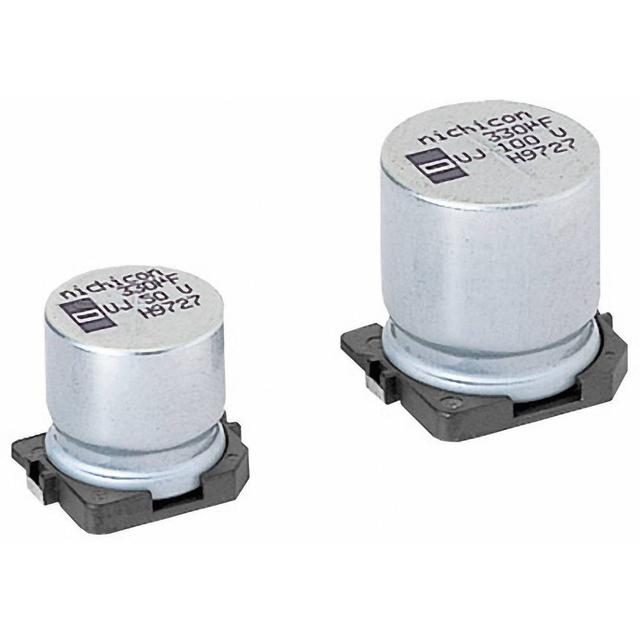

Radial Can - SMD ALUMINUM ELECTROLYTIC CAPACITOR UWZ 50V 10muF 20% 0.248Dia 6.30mm
Datasheet
DownloadProduct Attributes
Type
Capacitance
Case/Package
China RoHS
Contact Plating
Diameter
Dissipation Factor
Features
Height
Height - Seated (Max)
Lead Free
Lead Pitch
Leakage Current
Length
Life (Hours)
Lifecycle Status
Material
Max Operating Temperature
Min Operating Temperature
Mount
Number of Terminals
Polarity
REACH SVHC
Ripple Current
Ripple Current (AC)
RoHS
Schedule B
Termination
Tolerance
Voltage
Voltage Rating
Voltage Rating (DC)
Width
Description
10 µF
SMD/SMT
Compliant
Tin
6.3 mm
0.14 %
General Purpose
5.4 mm
5.4102 mm
Lead Free
2.2 mm
5 µA
6.6 mm
1000 hours
Production (Last Updated: 9 months ago)
Aluminium
105 °C
-55 °C
Surface Mount
2
Polar
No
30 mA
30 mA
Compliant
8532220020, 8532220020|8532220020|8532220020|8532220020|8532220020
SMD/SMT
20 %
50 V
50 V
50 V
6.6 mm
In Stock
Quantity
MOQ : 3
Minimum Qty : 3
Per Unit Price
₹41.18
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
10
₹20.68
₹206.79
25
₹20.66
₹516.52
50
₹20.66
₹1033.04
100
₹18.46
₹1846.47
Product Attributes
Type
Capacitance
Case/Package
China RoHS
Contact Plating
Diameter
Dissipation Factor
Features
Height
Height - Seated (Max)
Lead Free
Lead Pitch
Leakage Current
Length
Life (Hours)
Lifecycle Status
Material
Max Operating Temperature
Min Operating Temperature
Mount
Number of Terminals
Polarity
REACH SVHC
Ripple Current
Ripple Current (AC)
RoHS
Schedule B
Termination
Tolerance
Voltage
Voltage Rating
Voltage Rating (DC)
Width
Description
10 µF
SMD/SMT
Compliant
Tin
6.3 mm
0.14 %
General Purpose
5.4 mm
5.4102 mm
Lead Free
2.2 mm
5 µA
6.6 mm
1000 hours
Production (Last Updated: 9 months ago)
Aluminium
105 °C
-55 °C
Surface Mount
2
Polar
No
30 mA
30 mA
Compliant
8532220020, 8532220020|8532220020|8532220020|8532220020|8532220020
SMD/SMT
20 %
50 V
50 V
50 V
6.6 mm
