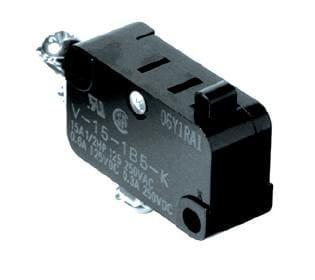

V-15-1B6
Manufacturer
Omron
Description
Switch Snap Action N.O./N.C. SPDT Pin Plunger 15A 250VAC 250VDC 372.85VA Screw Mount Screw
Datasheet
DownloadProduct Attributes
Type
Contact Current Rating
Contact Material
Current Rating
Differential Travel
Electrical Life
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Operating Force
Operating Position
Orientation
Overtravel
Pretravel
Ratings
REACH SVHC
RoHS
Schedule B
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Description
15 A
Silver
10 A
406.4 µm
100 kcycles
80 °C
250 V
250 V
50 Mcycles
-25 °C
Chassis Mount, Panel, Screw
4 N
14.7066 mm
Straight
1.016 mm
1.1938 mm
IP40
Unknown
Compliant
8536509040, 8536509040|8536509040, 8536509040|8536509040|8536509040, 8536509040|8536509040|8536509040|8536509040
On-Mom
Screw
SPDT
250 V
30 V
6.2 g
In Stock
Quantity
MOQ : 1
Per Unit Price
₹714.03
Total Price
₹714.03
Ships in 7-10 days from Bengaluru
