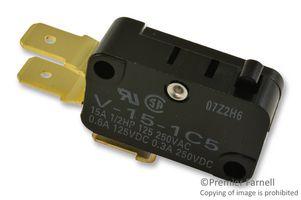

V-15-1C5
Manufacturer
Omron
Description
Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 15A 250VAC 250VDC 1.96N Screw Mount
Datasheet
DownloadProduct Attributes
Type
Contact Current Rating
Contact Voltage Rating (AC)
Current Rating
Differential Travel
Electrical Life
Height
Housing Material
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Positions
Operating Force
Operating Position
Overtravel
Pretravel
Ratings
REACH SVHC
RoHS
Schedule B
Sealable
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
15 A
250 V
10 A
406.4 µm
100 kcycles
15.9 mm
Thermoset
27.8 mm
Production (Last Updated: 7 months ago)
600 mA
80 °C
125 V
50 Mcycles
-25 °C
Chassis Mount
2
1.96 N
14.7066 mm
1.016 mm
1.2 mm
IP40
Unknown
Compliant
8536509040|8536509040|8536509040|8536509040|8536509040
IP40
On-Mom
Quick Connect
SPDT
250 V
30 V
10.3 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹513.07
Total Price
₹513.07
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹513.07
₹513.07
10
₹431.97
₹4319.73
25
₹435.03
₹10875.81
50
₹411.09
₹20554.75
100
₹388.49
₹38849.15
