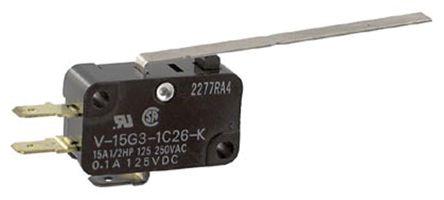

V-15G3-1C26-K
Manufacturer
Omron
Description
Switch; Snap Action; SPDT; Long Hinge Lever; Quick Connect Terminals; 15 Amp
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Contact Current Rating
Contact Resistance
Current Rating
Differential Travel
Electrical Life
Height
Lead Free
Life (Cycles)
Max Operating Temperature
Mechanical Life
Min Operating Temperature
Mount
Operating Force
Operating Position
Overtravel
Packaging
Pretravel
Ratings
RoHS
Schedule B
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Width
Description
80 °C
15 A
15 mΩ
15 A
2.794 mm
100 kcycles
10.7 mm
Lead Free
100 kcycles
80 °C
50 Mcycles
-25 °C
Chassis Mount, Panel
4 N
15.24 mm
2.0066 mm
Bulk
8.9916 mm
IP40
Compliant
8536509040
On-Mom
Quick Connect
SPDT
250 V
30 V
6.200012 g
27.8 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹385.02
Total Price
₹385.02
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹385.02
₹385.02
10
₹284.81
₹2848.11
25
₹284.79
₹7119.82
50
₹284.74
₹14236.76
100
₹264.23
₹26422.58
500
₹234.71
₹117355.73
1000
₹234.71
₹234711.45
