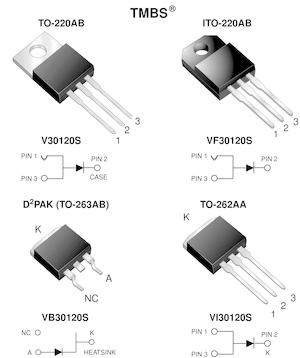

VB30120S-E3/4W
Manufacturer
Vishay
Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 30A, 120V V(RRM), Silicon, TO-263AB
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Contact Plating
Element Configuration
Forward Current
Forward Voltage
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Schedule B
Description
30 A
TO-263-3
Non-Compliant
Tin
Single
30 A
820 mV
Production (Last Updated: 9 months ago)
300 A
150 °C
30 A
120 V
500 µA
120 V
300 A
-40 °C
Surface Mount
1
3
2
300 A
500 µA
No
Yes
120 V
Compliant
8541100080
Out of Stock
