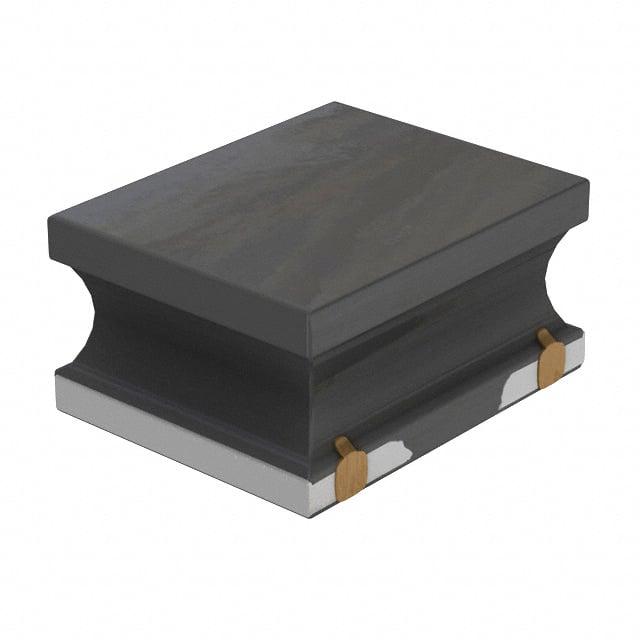

VLS201610HBX-2R2M-1
Manufacturer
TDK
Description
2.2 H Shielded Drum Core, Wirewound Inductor 1.45 A 170mOhm Max 0806 (2016 Metric)
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Metal
2.2 µH
±20%
1.45 A
1.7A
Shielded
170mOhm Max
-40°C ~ 105°C
1 MHz
Surface Mount
0806 (2016 Metric)
0806 (2016 Metric)
0.079" L x 0.063" W (2.00mm x 1.60mm)
0.039" (1.00mm)
₹29.51
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹24.25
₹242.47
25
₹24.28
₹607.10
50
₹24.28
₹1214.20
100
₹19.99
₹1999.28
500
₹19.99
₹9996.38
1000
₹16.44
₹16437.97
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Metal
2.2 µH
±20%
1.45 A
1.7A
Shielded
170mOhm Max
-40°C ~ 105°C
1 MHz
Surface Mount
0806 (2016 Metric)
0806 (2016 Metric)
0.079" L x 0.063" W (2.00mm x 1.60mm)
0.039" (1.00mm)
