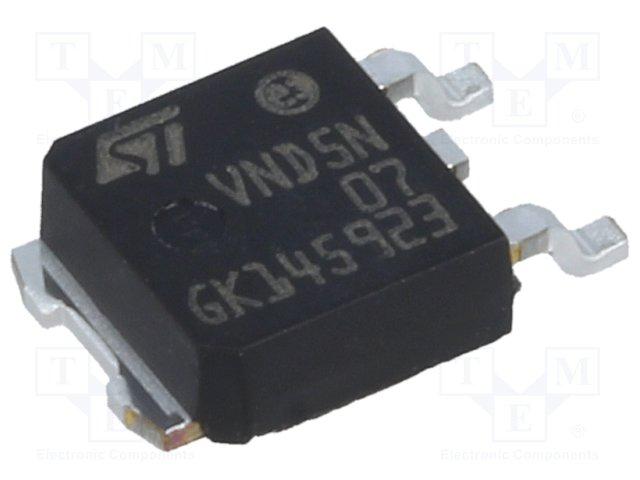

VND5N07-E

Manufacturer

STMicroelectronics

Description

VND5N07 Single Low Side Autoprotected 70 V 5 A 0.2 Ohm Power MosFet TO-252-3

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

China RoHS

Continuous Drain Current (ID)

Current

Drain to Source Breakdown Voltage

Drain to Source Resistance

Drain to Source Voltage (Vdss)

Height

Height - Seated (Max)

Lead Free

Length

Lifecycle Status

Max Operating Temperature

Max Output Current

Max Power Dissipation

Max Supply Voltage

Min Operating Temperature

Mount

Nominal Supply Current

Number of Channels

Number of Circuits

Number of Outputs

Number of Pins

Number of Terminals

Operating Supply Voltage

Output Current

Output Voltage

Power Dissipation

Radiation Hardening

REACH SVHC

Resistance

RoHS

Schedule B

Terminal Pitch

Threshold Voltage

Turn-Off Delay Time

Turn-On Delay Time

Voltage

Width

Description

DPAK

Non-Compliant

5 A

5 A

70 V

280 mΩ

70 V

2.63 mm

2.63 mm

Lead Free

6.5 mm

Production (Last Updated: 8 months ago)

150 °C

5 A

60 W

70 V

-40 °C

Surface Mount

250 µA

1

1

1

3

2

5 V

5 A

55 V

60 W

No

No SVHC

200 mΩ

Compliant

8542390000

2.28 mm

3 V

5 µs

250 ns

70 V

6.1 mm

In Stock


Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹208.07

Total Price

₹208.07


delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

208.07

208.07

10

117.02

1170.19

25

117.02

2925.47

50

111.95

5597.71

100

106.59

10659.34

500

102.32

51162.05

1000

82.40

82395.05
