VS-20ETS12STRL-M3
Manufacturer
Vishay
Description

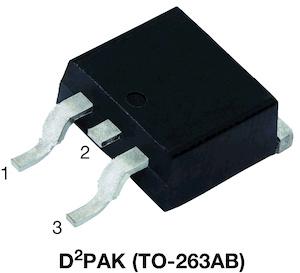

Rectifier Diode Switching 1.2KV 20A 3-Pin(2+Tab) D2PAK T/R
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Element Configuration
Forward Current
Forward Voltage
Height
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Reverse Current
REACH SVHC
Reverse Standoff Voltage
Reverse Voltage
RoHS
Schedule B
Width
Description
20 A
D2PAK
Non-Compliant
Single
20 A
1.1 V
5.084 mm
10.67 mm
Production (Last Updated: 9 months ago)
300 A
150 °C
150 °C
20 A
1.2 kV
1.2 kV
-40 °C
Surface Mount
1
3
2
100 µA
Yes
1.2 kV
1.2 kV
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
9.65 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹252.05
Total Price
₹252.05
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹252.05
₹252.05
10
₹180.75
₹1807.55
25
₹180.74
₹4518.43
50
₹180.77
₹9038.61
100
₹138.93
₹13892.81
500
₹138.94
₹69467.59
1000
₹98.63
₹98626.28
