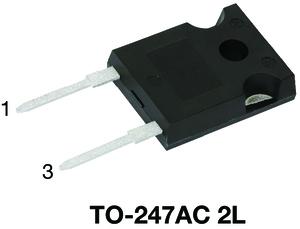

VS-30EPH06-N3
Manufacturer
Vishay
Description
Rectifier Diode, 1 Phase, 1 Element, 30A, 600V V(RRM), Silicon
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
Element Configuration
Forward Current
Forward Voltage
Height
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Terminals
Peak Reverse Current
Recovery Time
Reverse Recovery Time
Reverse Standoff Voltage
Reverse Voltage (DC)
RoHS
Schedule B
Width
Description
30 A
TO-247-2
Single
30 A
2.6 V
20.7 mm
15.87 mm
Production (Last Updated: 9 months ago)
300 A
175 °C
30 A
600 V
300 A
-65 °C
Through Hole
1
2
50 µA
31 ns
35 ns
600 V
600 V
Compliant
8541100080, 8541100080|8541100080, 8541100080|8541100080|8541100080, 8541100080|8541100080|8541100080|8541100080
5.31 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹309.44
Total Price
₹309.44
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹309.44
₹309.44
10
₹309.26
₹3092.64
25
₹309.23
₹7730.70
50
₹278.78
₹13939.10
100
₹278.77
₹27877.31
500
₹278.77
₹139386.55
1000
₹277.82
₹277821.65
