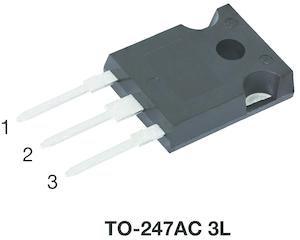

VS-63CPQ100-N3
Manufacturer
Vishay
Description
Rectifier Diode, Schottky, 1 Phase, 2 Element, 100V V(RRM), Silicon, TO-247AC
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
Element Configuration
Forward Current
Forward Voltage
Height
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Reverse Current
Reverse Standoff Voltage
RoHS
Schedule B
Width
Description
30 A
TO-247-3
Common Cathode
60 A
920 mV
20.7 mm
15.87 mm
Production (Last Updated: 7 months ago)
2.2 kA
175 °C
100 V
100 V
-55 °C
Through Hole
2
3
3
300 µA
100 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
5.31 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹487.28
Total Price
₹487.28
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹487.28
₹487.28
10
₹442.47
₹4424.66
25
₹310.19
₹7754.71
50
₹310.17
₹15508.54
100
₹297.80
₹29780.20
500
₹296.85
₹148425.26
1000
₹332.62
₹332624.82
