VS-HFA32PA120C-N3
Manufacturer
Vishay
Description

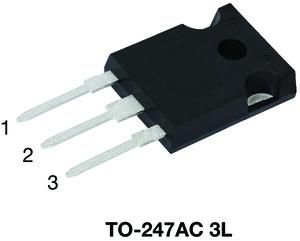

Rectifier Diode, 1 Phase, 2 Element, 16A, 1200V V(RRM), Silicon, TO-247AC
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
Element Configuration
Forward Current
Forward Voltage
Height
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Reverse Current
Reverse Recovery Time
Reverse Standoff Voltage
RoHS
Schedule B
Width
Description
16 A
TO-247-3
Common Cathode
16 A
3.93 V
20.7 mm
15.87 mm
Production (Last Updated: 9 months ago)
190 A
150 °C
16 A
151 W
1.2 kV
1.2 kV
-55 °C
Through Hole
2
3
3
Bulk
20 µA
135 ns
1.2 kV
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
5.31 mm
