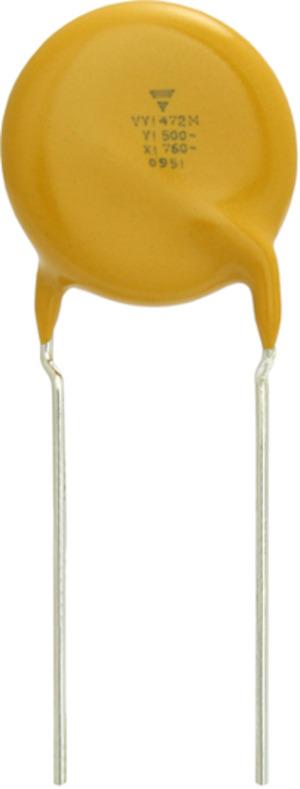

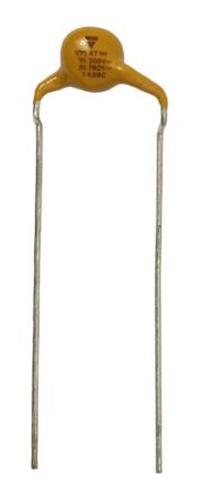

VY1222M43Y5UC63V0
Manufacturer
Vishay
Description
Ceramic Suppression Capacitor, Disc, 2200 pF, 20%, X1 / Y1, 760 V, 500 V, Radial Leaded
Datasheet
DownloadProduct Attributes
Type
Capacitance
Case/Package
Depth
Diameter
Dielectric
Dielectric Material
Dissipation Factor
Height
Height - Seated (Max)
Lead/Base Style
Lead Free
Lead Pitch
Length
Lifecycle Status
Material
Max Operating Temperature
Min Operating Temperature
Mount
Number of Terminals
Packaging
Ratings
REACH SVHC
RoHS
Schedule B
Terminal Pitch
Termination
Tolerance
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
2.2 nF
Radial
5 mm
11 mm
Y5U
Ceramic
2.5 %
11 mm
15.0114 mm
Kinked
Lead Free
10.0076 mm
11 mm
Production (Last Updated: 9 months ago)
Ceramic
125 °C
-40 °C
Through Hole
2
Bulk
X1, Y1
Yes
Compliant
8532230060, 8532230060|8532230060|8532230060|8532230060|8532230060
10 mm
Radial
20 %
1.5 kV
500 V
1.5 kV
5 mm
In Stock
Quantity
MOQ : 3
Minimum Qty : 3
Per Unit Price
₹39.15
Total Price
₹117.45
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹117.45
₹117.45
10
₹20.11
₹201.14
25
₹20.10
₹502.41
50
₹20.11
₹1005.71
100
₹15.10
₹1510.33
500
₹13.27
₹6634.00
1000
₹11.71
₹11705.03
