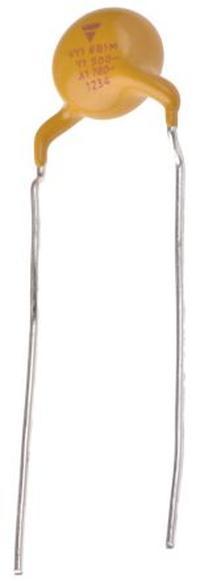

VY1681M31Y5UQ6TV0
Manufacturer
Vishay
Description
Ceramic Suppression Capacitor, Y5U, Disc, 680 pF, 20%, X1 / Y1, 760 V, 500 V, Radial Leaded
Datasheet
DownloadProduct Attributes
Type
Capacitance
Case/Package
China RoHS
Composition
Depth
Diameter
Dielectric
Dielectric Material
Height
Height - Seated (Max)
Lead/Base Style
Lead Diameter
Lead Pitch
Length
Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Number of Terminals
Packaging
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Terminal Pitch
Termination
Tolerance
Voltage
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
680 pF
Radial
Compliant
Ceramic
5 mm
8 mm
Y5U
Ceramic
8 mm
11.9888 mm
Kinked
600 µm
10 mm
8 mm
Production (Last Updated: 9 months ago)
125 °C
-40 °C
Through Hole
2
Tape & Reel (TR)
No
Yes
Compliant
8532230060, 8532230060|8532230060, 8532230060|8532230060|8532230060, 8532230060|8532230060|8532230060|8532230060
10 mm
Radial
20 %
500 V
500 V
1.5 kV
5 mm
₹46.20
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹20.69
₹206.94
25
₹20.69
₹517.35
50
₹19.60
₹979.97
100
₹18.50
₹1850.45
500
₹13.88
₹6937.70
1000
₹12.28
₹12280.80
