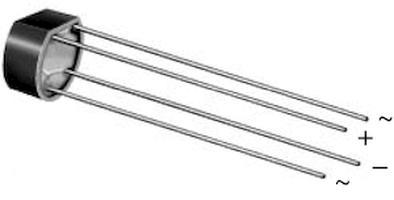

W10G-E4/51
Manufacturer
Vishay
Description
W10G Series 1000 V 50 V Glass Passivated Single-Phase Bridge Rectifier - WOG
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Breakdown Voltage
Capacitance
Current Rating
Data Rate
Diameter
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Surge Current
Manufacturer Package Identifier
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Output Current
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
RoHS
Schedule B
Description
1.5 A
1 kV
14 pF
1.5 A
4 Mbps
9 mm
Single
1.5 A
1 V
5.6 mm
Lead Free
9.86 mm
50 A
150 °C
150 °C
1 kV
5 µA
50 A
W10G-E4/51
-55 °C
Through Hole
1
4
1.5 A
Bulk
50 A
5 µA
No
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹126.75
Total Price
₹126.75
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹126.75
₹126.75
10
₹62.37
₹623.72
25
₹62.37
₹1559.31
50
₹62.37
₹3118.62
100
₹44.19
₹4418.84
500
₹34.17
₹17086.46
1000
₹31.83
₹31833.93
