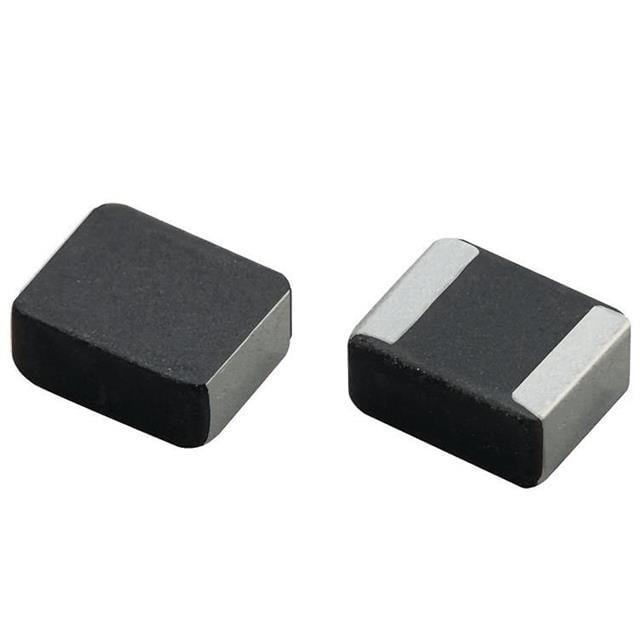

WIP252012S-R47MLDG
Manufacturer
Inpaq Technology
Description
470 nH Shielded Wirewound Inductor 4.9 A 22mOhm Max 1008 (2520 Metric)
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Wirewound
Metal
470 nH
±20%
4.9 A
6.2A
Shielded
22mOhm Max
120MHz
-40°C ~ 125°C
1 MHz
Surface Mount
1008 (2520 Metric)
1008
0.098" L x 0.079" W (2.50mm x 2.00mm)
0.047" (1.20mm)
₹13.71
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹10.29
₹102.91
25
₹7.95
₹198.85
50
₹7.93
₹396.68
100
₹6.48
₹647.80
500
₹6.48
₹3241.05
1000
₹5.33
₹5334.10
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Packaging
Size / Dimension
Height - Seated (Max)
Description
Wirewound
Metal
470 nH
±20%
4.9 A
6.2A
Shielded
22mOhm Max
120MHz
-40°C ~ 125°C
1 MHz
Surface Mount
1008 (2520 Metric)
1008
0.098" L x 0.079" W (2.50mm x 2.00mm)
0.047" (1.20mm)
