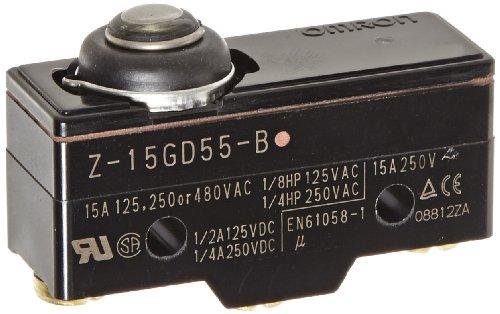

Z-15GD55-B
Manufacturer
Omron
Description
Switch Snap Action N.O./N.C. SPDT Short Spring Plunger Screw 15A 250VAC 250VDC 5.3N Screw Mount
Datasheet
DownloadProduct Attributes
Type
Actuator Material
Contact Current Rating
Contact Material
Contact Voltage Rating (AC)
Depth
Differential Travel
Electrical Life
Height
Lead Free
Length
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Operating Force
Operating Position
Orientation
Overtravel
Packaging
Pretravel
Ratings
RoHS
Sealable
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Description
Stainless Steel
15 A
Silver
250 V
17.45 mm
50.8 µm
500 kcycles
25.5 mm
Lead Free
49.2 mm
Production (Last Updated: 7 months ago)
15 A
80 °C
500 V
14 V
20 Mcycles
-15 °C
Chassis Mount, Panel, Screw
5.29 N
21.4884 mm
Straight
1.5748 mm
Bulk
1.8 mm
IP00, IP62
Compliant
IP62
On-Mom
Screw
SPDT
125 V
30 V
58 g
In Stock
Quantity
MOQ : 1
Per Unit Price
₹2239.01
Total Price
₹2239.01
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹2239.01
₹2239.01
10
₹1852.65
₹18526.48
25
₹1683.04
₹42076.06
50
₹1653.95
₹82697.60
100
₹1562.47
₹156246.67
