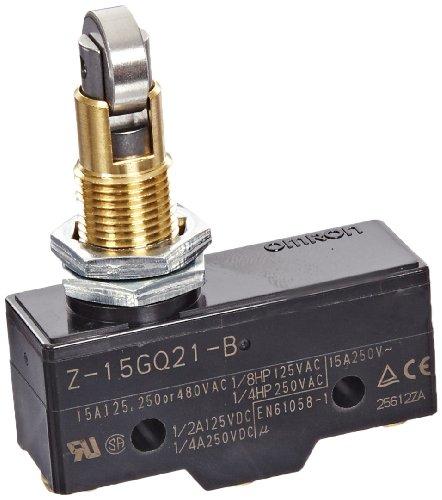

Z-15GQ21-B
Manufacturer
Omron
Description
Snap Action Switch N.O./N.C. SPDT Cross Roller Plunger Screw 15A 500VAC Screw Mount
Datasheet
DownloadProduct Attributes
Type
Actuator Material
Ambient Temperature Range High
Approvals
Contact Current Rating
Contact Material
Contact Resistance
Contact Voltage Rating (AC)
Current Rating
Depth
Differential Travel
Electrical Life
Height
Lead Free
Length
Life (Cycles)
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Poles
Number of Positions
Operating Force
Operating Position
Orientation
Overtravel
Packaging
Pretravel
Ratings
REACH SVHC
RoHS
Schedule B
Sealable
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Description
Stainless Steel
80 °C
CSA, UL
15 A
Silver
15 mΩ
250 V
15 A
17.45 mm
50.8 µm
500 kcycles
25.5 mm
Lead Free
49.2 mm
500 kcycles
Production (Last Updated: 8 months ago)
15 A
80 °C
500 V
14 V
10 Mcycles
-25 °C
Panel, Screw
1
2
3.43 N
33.3502 mm
Straight
3.5814 mm
Bulk
400 µm
IP00
No
Non-Compliant
8536509040, 8536509040|8536509040|8536509040|8536509040|8536509040
IP00
On-Mom
Screw
SPDT
250 V
30 V
58 g
In Stock
Quantity
MOQ : 1
Per Unit Price
₹2158.97
Total Price
₹2158.97
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹2158.97
₹2158.97
10
₹2158.97
₹21589.74
25
₹2158.97
₹53974.35
50
₹2033.94
₹101696.91
100
₹2033.95
₹203394.72
