Z-15GW22-B
Manufacturer
Omron
Description

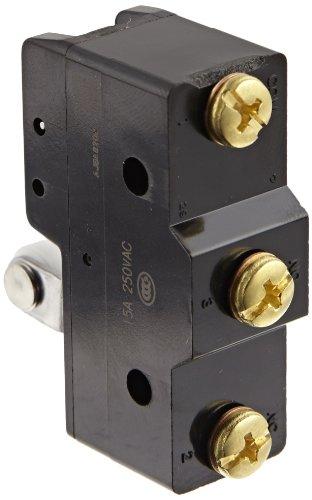

Snap-Action Switch 1-(1) SPDT 15A 250VAC Short Roller Lever, Screw Terminal M4 Z-15GW22-B
Datasheet
DownloadProduct Attributes
Type
Actuator Material
Ambient Temperature Range High
Approvals
Contact Current Rating
Contact Material
Contact Resistance
Contact Voltage Rating (AC)
Current Rating
Depth
Differential Travel
Electrical Life
Height
Lead Free
Length
Life (Cycles)
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Poles
Number of Positions
Operating Force
Operating Position
Orientation
Overtravel
Packaging
Ratings
REACH SVHC
RoHS
Sealable
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Description
Plastic, Stainless Steel
80 °C
CSA, UL
15 A
Silver
15 mΩ
250 V
15 A
17.45 mm
508 µm
500 kcycles
25.5 mm
Lead Free
49.2 mm
500 kcycles
Obsolete (Last Updated: 8 months ago)
15 A
80 °C
500 V
14 V
10 Mcycles
-25 °C
Chassis Mount, Panel, Screw
1
2
1.57 N
30.1752 mm
Straight
2.3876 mm
Bulk
IP00
Unknown
Compliant
IP00
On-Mom
Screw
SPDT
250 V
30 V
58 g
In Stock
Quantity
MOQ : 1
Per Unit Price
₹1289.76
Total Price
₹1289.76
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹1289.76
₹1289.76
10
₹1116.39
₹11163.91
25
₹1035.60
₹25889.95
50
₹1024.57
₹51228.59
100
₹1024.57
₹102457.18
500
₹1024.57
₹512284.13
1000
₹1024.57
₹1024567.36
