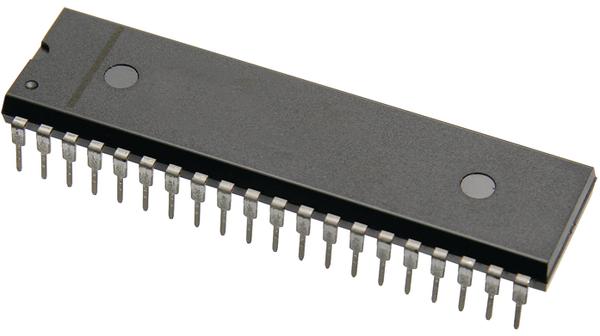

Z84C0008PEG
Manufacturer
Zilog
Description
Z84C00 Series 8 MHz 5 V Through Hole NMOS/CMOS Z80 CPU Microprocessor - PDIP-40
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Clock Rate
Core Architecture
Data Bus Width
Frequency
Height
Height - Seated (Max)
Lead Free
Length
Max Frequency
Max Operating Temperature
Max Supply Current
Max Supply Voltage
Memory Size
Memory Type
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of I/Os
Number of Interrupts
Number of Pins
Number of Terminals
Operating Supply Voltage
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Terminal Pitch
Voltage
Width
Description
DIP
Compliant
8 MHz
Z8
8 b
8 MHz
4.19 mm
4.75 mm
Lead Free
52.325 mm
8 MHz
100 °C
40 mA
5.5 V
64 kB
ROMless
-40 °C
4.5 V
Through Hole
8
0
2
40
40
5 V
No
Yes
Compliant
8542310000
2.54 mm
5 V
15.24 mm
Out of Stock
Ships in 7-10 days
