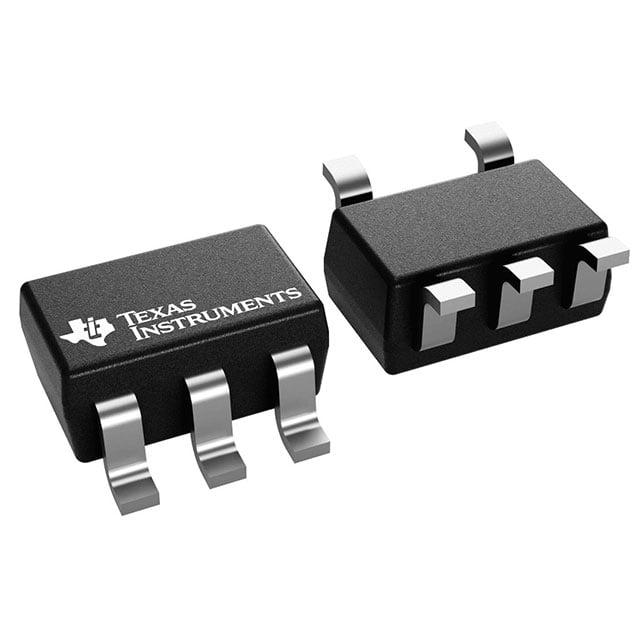

sn74ahc1g08dckr
Manufacturer
Texas Instruments
Description
TEXAS INSTRUMENTS - SN74AHC1G08DCKR - Logic IC, AND Gate, Single, 2 Inputs, 5 Pins, SC-70, 74AHC1G08
Datasheet
DownloadProduct Attributes
Type
Logic Type
Number of Circuits
Number of Input Lines
Voltage
Quiescent Current
Current - Output High, Low
Input Logic Level - Low
Input Logic Level - High
Max Propagation Delay @ V, Max CL
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
AND Gate
1
2
2V ~ 5.5V
1 µA
8mA, 8mA
0.5V ~ 1.65V
1.5V ~ 3.85V
7.9ns @ 5V, 50pF
-55°C ~ 125°C
Surface Mount
SC-70-5
5-TSSOP, SC-70-5, SOT-353
₹6.24
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
25
₹6.24
₹155.89
50
₹6.24
₹311.78
100
₹4.70
₹470.05
500
₹4.49
₹2243.15
1000
₹4.32
₹4319.70
Product Attributes
Type
Logic Type
Number of Circuits
Number of Input Lines
Voltage
Quiescent Current
Current - Output High, Low
Input Logic Level - Low
Input Logic Level - High
Max Propagation Delay @ V, Max CL
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
AND Gate
1
2
2V ~ 5.5V
1 µA
8mA, 8mA
0.5V ~ 1.65V
1.5V ~ 3.85V
7.9ns @ 5V, 50pF
-55°C ~ 125°C
Surface Mount
SC-70-5
5-TSSOP, SC-70-5, SOT-353
