sru1048-470y
Manufacturer
Bourns
Description

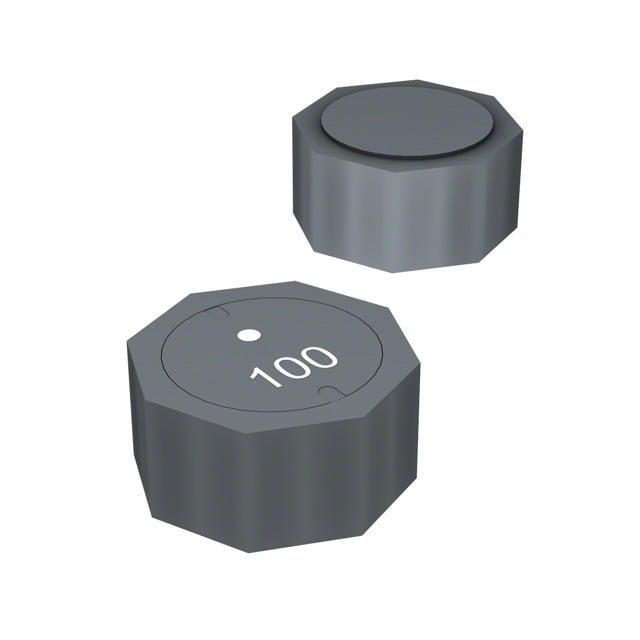

BOURNS - SRU1048-470Y - Power Inductor (SMD), 47 H, 1.7 A, Shielded, 1.5 A, SRU1048 Series
Datasheet
DownloadProduct Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ferrite
47 µH
±30%
1.7 A
1.5A
Shielded
94mOhm
26 @ 2.52MHz
8MHz
-40°C ~ 125°C
100 kHz
Surface Mount
Nonstandard
0.394" L x 0.394" W (10.00mm x 10.00mm)
0.201" (5.10mm)
₹110.93
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹110.93
₹110.93
10
₹91.63
₹916.31
25
₹91.63
₹2290.80
50
₹91.00
₹4550.24
100
₹75.30
₹7530.38
Product Attributes
Type
Type
Core Material
Inductance
Tolerance
Current Rating (Amps)
Saturation Current
Shielding
DC Resistance (DCR)
Q @ Freq
Frequency - Self Resonant
Max Operating Temperature
Inductance Frequency - Test
Mounting Type
Case/Package
Size / Dimension
Height - Seated (Max)
Description
Drum Core, Wirewound
Ferrite
47 µH
±30%
1.7 A
1.5A
Shielded
94mOhm
26 @ 2.52MHz
8MHz
-40°C ~ 125°C
100 kHz
Surface Mount
Nonstandard
0.394" L x 0.394" W (10.00mm x 10.00mm)
0.201" (5.10mm)
