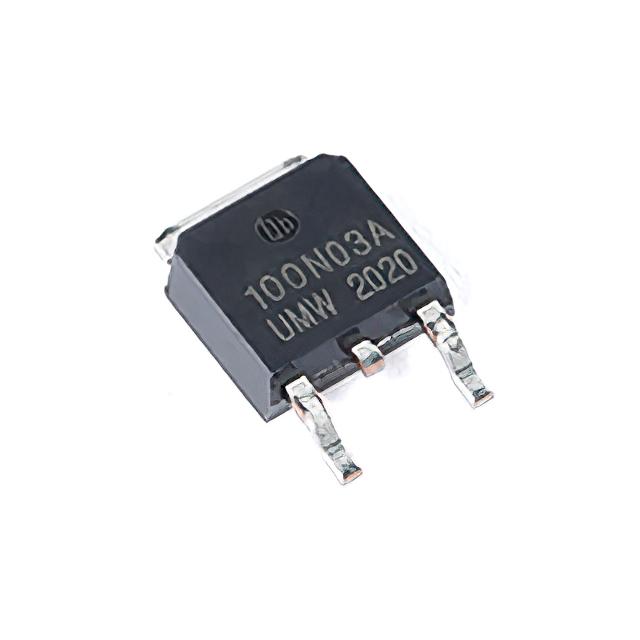

100N03A
Manufacturer
UMW
Description
N-Channel 30 V 90A (Tc) 105W (Tc) Surface Mount TO-252 (DPAK)
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
30 V
90A (Tc)
4.5V, 10V
4.9mOhm @ 30A, 10V
2.5V @ 250µA
41 nC @ 10 V
±20V
1963 pF @ 15 V
105W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
TO-252 (DPAK)
TO-252-3, DPAK (2 Leads + Tab), SC-63
₹148.63
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹148.63
₹148.63
10
₹93.28
₹932.75
25
₹93.23
₹2330.85
50
₹68.78
₹3438.88
100
₹60.87
₹6087.48
500
₹46.95
₹23474.55
1000
₹46.95
₹46949.10
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
30 V
90A (Tc)
4.5V, 10V
4.9mOhm @ 30A, 10V
2.5V @ 250µA
41 nC @ 10 V
±20V
1963 pF @ 15 V
105W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
TO-252 (DPAK)
TO-252-3, DPAK (2 Leads + Tab), SC-63
