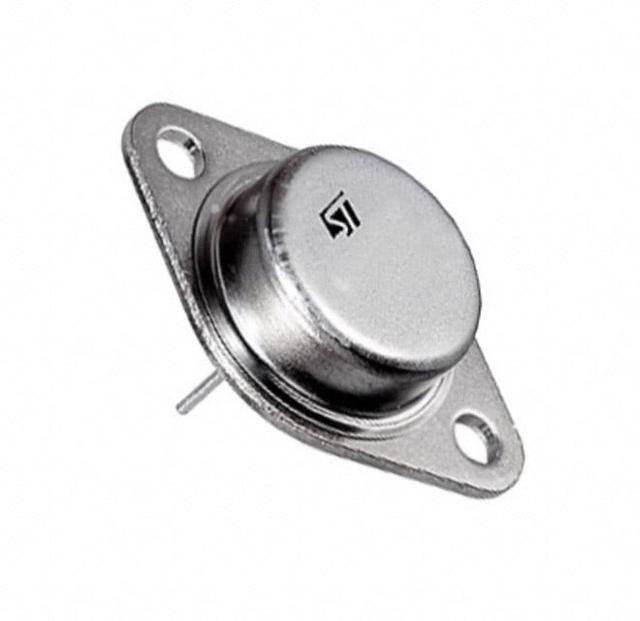

2N6059
Manufacturer
STMicroelectronics
Description
MULTICOMP PRO - 2N6059 - Darlington Transistor, NPN, 100 V, 150 W, 12 A, TO-3, 2 Pins
Datasheet
DownloadProduct Attributes
Type
Transistor Type
Current - Collector (Ic) (Max)
Collector Emitter Breakdown Voltage
Vce Saturation (Max) @ Ib, Ic
Continuous Collector Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Output Power
Transition Frequency
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
NPN - Darlington
12 A
100 V
3V @ 120mA, 12A
1mA
750 @ 6A, 3V
150 W
4MHz
200°C (TJ)
Chassis Mount
TO-204AA, TO-3
TO-3
₹483.46
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹483.46
₹483.46
10
₹258.38
₹2583.85
25
₹258.38
₹6459.62
50
₹5363.47
₹268173.64
Product Attributes
Type
Transistor Type
Current - Collector (Ic) (Max)
Collector Emitter Breakdown Voltage
Vce Saturation (Max) @ Ib, Ic
Continuous Collector Current
DC Current Gain (hFE) (Min) @ Ic, Vce
Output Power
Transition Frequency
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
NPN - Darlington
12 A
100 V
3V @ 120mA, 12A
1mA
750 @ 6A, 3V
150 W
4MHz
200°C (TJ)
Chassis Mount
TO-204AA, TO-3
TO-3
