744235801
Manufacturer
Würth Elektronik Midcom
Description

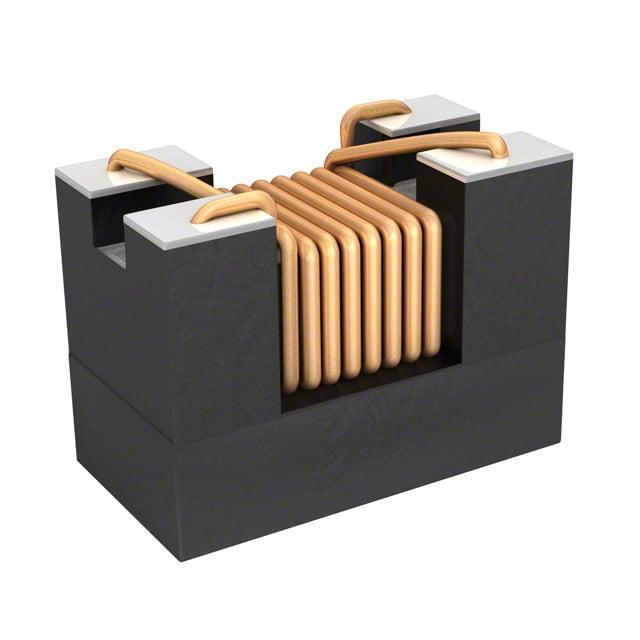

WURTH ELEKTRONIK - 744235801 - Filter, Line, Common Mode, 1.3 H, WE-CNSW Series, 800 ohm, 1 A, 4.5mm x 3.2mm x 2.8mm
Datasheet
DownloadProduct Attributes
Type
Filter Type
Number of Lines
Impedance @ Frequency
Inductance @ Frequency
Max Current Rating
DC Resistance (DCR) (Max)
Voltage Rating (DC)
Max Operating Temperature
Ratings
Mounting Type
Size / Dimension
Height
Case/Package
Description
Signal Line
2
800 Ohms @ 100 MHz
1.3 µH @ 100 kHz
1A
120mOhm
60V
-40°C ~ 125°C
AEC-Q200
Surface Mount
0.177" L x 0.126" W (4.50mm x 3.20mm)
0.118" (3.00mm)
Horizontal, 4 PC Pad
₹229.41
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹229.41
₹229.41
10
₹226.86
₹2268.58
25
₹226.86
₹5671.46
50
₹203.91
₹10195.68
100
₹182.25
₹18224.97
500
₹160.59
₹80292.86
1000
₹160.59
₹160585.72
Product Attributes
Type
Filter Type
Number of Lines
Impedance @ Frequency
Inductance @ Frequency
Max Current Rating
DC Resistance (DCR) (Max)
Voltage Rating (DC)
Max Operating Temperature
Ratings
Mounting Type
Size / Dimension
Height
Case/Package
Description
Signal Line
2
800 Ohms @ 100 MHz
1.3 µH @ 100 kHz
1A
120mOhm
60V
-40°C ~ 125°C
AEC-Q200
Surface Mount
0.177" L x 0.126" W (4.50mm x 3.20mm)
0.118" (3.00mm)
Horizontal, 4 PC Pad
