744238252
Manufacturer
Würth Elektronik Midcom
Description

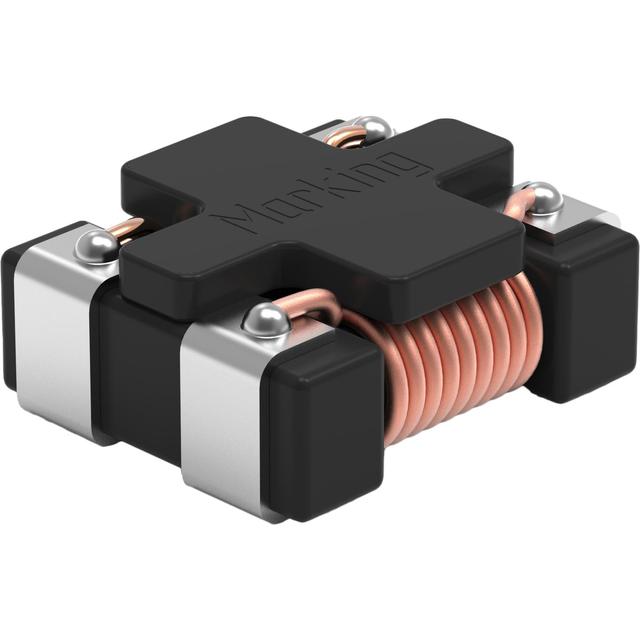

WURTH ELEKTRONIK - 744238252 - Common Mode Choke, 2.5 kohm, 27 H, 1.2 A, 7mm x 6mm x 3.5mm, WE-CMDC Series
Datasheet
DownloadProduct Attributes
Type
Filter Type
Number of Lines
Impedance @ Frequency
Inductance @ Frequency
Max Current Rating
DC Resistance (DCR) (Max)
Voltage Rating (DC)
Max Operating Temperature
Ratings
Mounting Type
Size / Dimension
Height
Case/Package
Description
Signal Line
2
2.5 kOhms @ 100 MHz
27 µH @ 100 kHz
1.2A
72mOhm
80V
-40°C ~ 125°C
AEC-Q200
Surface Mount
0.276" L x 0.236" W (7.00mm x 6.00mm)
0.138" (3.50mm)
Horizontal, 4 PC Pad
₹270.19
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹270.19
₹270.19
10
₹217.93
₹2179.34
25
₹217.93
₹5448.34
50
₹217.93
₹10896.70
100
₹182.25
₹18224.97
500
₹169.72
₹84861.78
1000
₹169.72
₹169723.55
Product Attributes
Type
Filter Type
Number of Lines
Impedance @ Frequency
Inductance @ Frequency
Max Current Rating
DC Resistance (DCR) (Max)
Voltage Rating (DC)
Max Operating Temperature
Ratings
Mounting Type
Size / Dimension
Height
Case/Package
Description
Signal Line
2
2.5 kOhms @ 100 MHz
27 µH @ 100 kHz
1.2A
72mOhm
80V
-40°C ~ 125°C
AEC-Q200
Surface Mount
0.276" L x 0.236" W (7.00mm x 6.00mm)
0.138" (3.50mm)
Horizontal, 4 PC Pad
