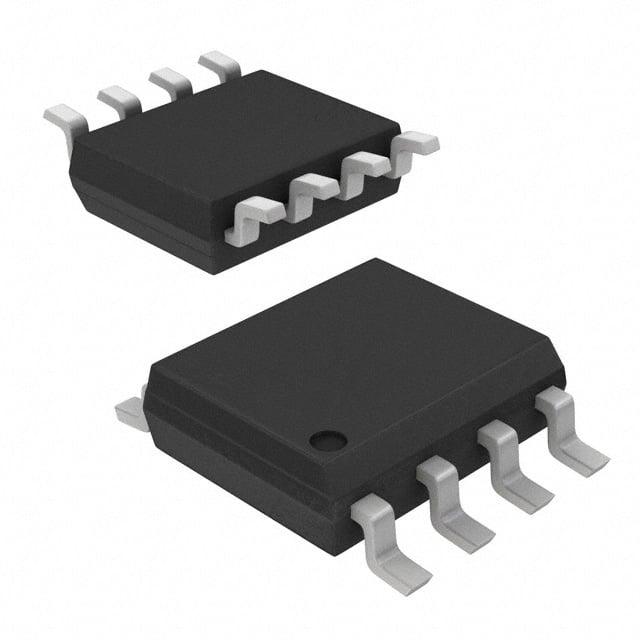

AO4468
Manufacturer
Alpha & Omega Semiconductor
Description
N-Channel 30 V 10.5A (Ta) 3.1W (Ta) Surface Mount 8-SOIC
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
30 V
10.5A (Ta)
4.5V, 10V
14mOhm @ 11.6A, 10V
3V @ 250µA
24 nC @ 10 V
±20V
1200 pF @ 15 V
3.1W (Ta)
-55°C ~ 150°C (TJ)
Surface Mount
8-SOIC
8-SOIC (0.154", 3.90mm Width)
₹126.08
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹126.08
₹126.08
10
₹78.21
₹782.08
25
₹78.23
₹1955.70
50
₹57.44
₹2872.05
100
₹50.72
₹5071.70
500
₹38.84
₹19421.70
1000
₹38.84
₹38843.40
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
30 V
10.5A (Ta)
4.5V, 10V
14mOhm @ 11.6A, 10V
3V @ 250µA
24 nC @ 10 V
±20V
1200 pF @ 15 V
3.1W (Ta)
-55°C ~ 150°C (TJ)
Surface Mount
8-SOIC
8-SOIC (0.154", 3.90mm Width)
