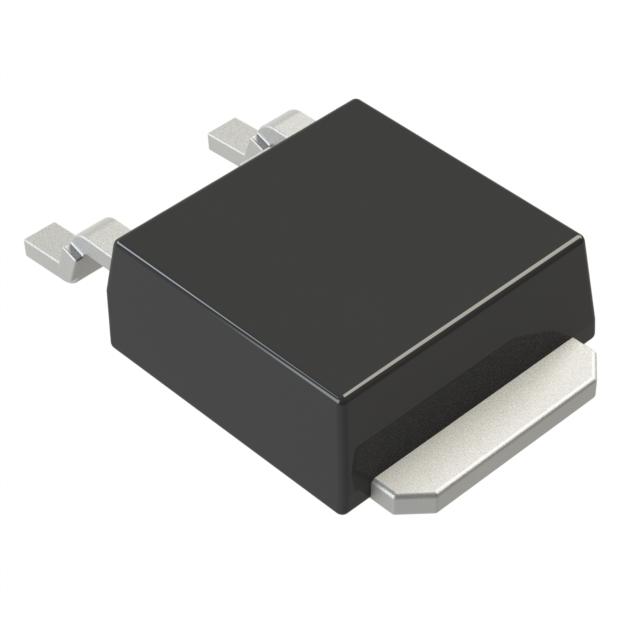

AOD403
Manufacturer
Alpha & Omega Semiconductor
Description
P-Channel 30 V 15A (Ta), 70A (Tc) 2.5W (Ta), 90W (Tc) Surface Mount TO-252 (DPAK)
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
30 V
15A (Ta), 70A (Tc)
10V, 20V
6mOhm @ 20A, 20V
3.5V @ 250µA
120 nC @ 10 V
±25V
5300 pF @ 15 V
2.5W (Ta), 90W (Tc)
-55°C ~ 175°C (TJ)
Surface Mount
TO-252 (DPAK)
TO-252-3, DPAK (2 Leads + Tab), SC-63
₹280.85
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹280.85
₹280.85
10
₹178.56
₹1785.55
25
₹178.56
₹4463.88
50
₹134.60
₹6730.15
100
₹120.37
₹12036.58
500
₹95.42
₹47707.60
1000
₹95.42
₹95416.23
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
30 V
15A (Ta), 70A (Tc)
10V, 20V
6mOhm @ 20A, 20V
3.5V @ 250µA
120 nC @ 10 V
±25V
5300 pF @ 15 V
2.5W (Ta), 90W (Tc)
-55°C ~ 175°C (TJ)
Surface Mount
TO-252 (DPAK)
TO-252-3, DPAK (2 Leads + Tab), SC-63
