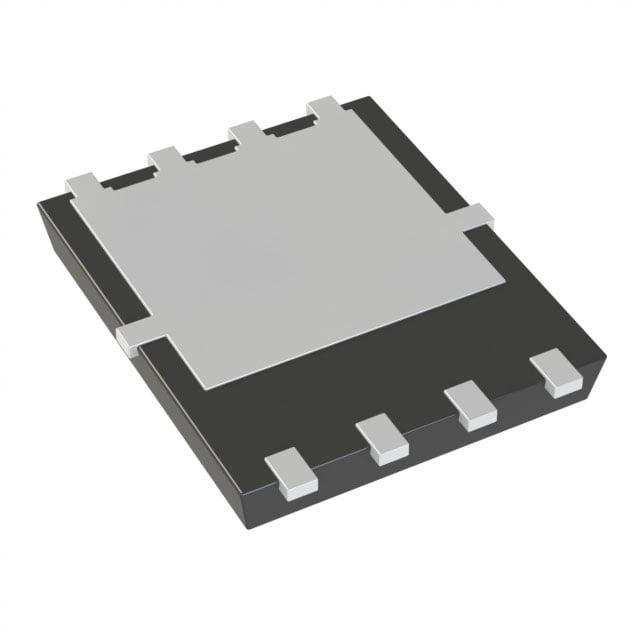

AON6262E
Manufacturer
Alpha & Omega Semiconductor
Description
N-Channel 60 V 40A (Tc) 48W (Tc) Surface Mount 8-DFN (5x6)
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
60 V
40A (Tc)
4.5V, 10V
6.2mOhm @ 20A, 10V
2.2V @ 250µA
45 nC @ 10 V
±20V
1650 pF @ 30 V
48W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
8-DFN (5x6)
8-PowerSMD, Flat Leads
₹261.38
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹261.38
₹261.38
10
₹165.64
₹1656.40
25
₹165.58
₹4139.46
50
₹124.46
₹6222.77
100
₹111.17
₹11117.15
500
₹87.83
₹43916.13
1000
₹87.83
₹87833.27
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
60 V
40A (Tc)
4.5V, 10V
6.2mOhm @ 20A, 10V
2.2V @ 250µA
45 nC @ 10 V
±20V
1650 pF @ 30 V
48W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
8-DFN (5x6)
8-PowerSMD, Flat Leads
