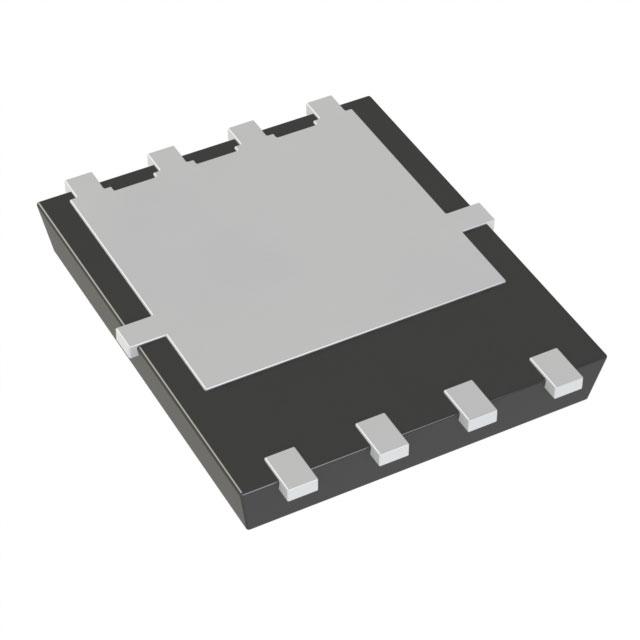

AON6411
Manufacturer
Alpha & Omega Semiconductor
Description
P-Channel 20 V 47A (Ta), 85A (Tc) 7.3W (Ta), 156W (Tc) Surface Mount 8-DFN (5x6)
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
20 V
47A (Ta), 85A (Tc)
2.5V, 10V
2.1mOhm @ 20A, 10V
1.3V @ 250µA
330 nC @ 10 V
±12V
10290 pF @ 10 V
7.3W (Ta), 156W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
8-DFN (5x6)
8-PowerSMD, Flat Leads
₹311.10
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹311.10
₹311.10
10
₹200.02
₹2000.19
25
₹200.07
₹5001.85
50
₹200.07
₹10003.69
100
₹136.44
₹13644.48
500
₹109.21
₹54607.20
1000
₹100.46
₹100464.26
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
20 V
47A (Ta), 85A (Tc)
2.5V, 10V
2.1mOhm @ 20A, 10V
1.3V @ 250µA
330 nC @ 10 V
±12V
10290 pF @ 10 V
7.3W (Ta), 156W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
8-DFN (5x6)
8-PowerSMD, Flat Leads
