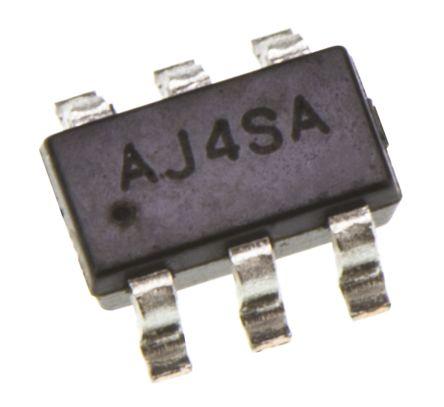

AP5100WG-7
Manufacturer
Diodes Inc.
Description
AP5100 Series 24 V 1.7 MHz Step-Down Converter with Switching Frequency- SOT23-6
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Efficiency
Height
Height - Seated (Max)
Lead Free
Length
Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Switching Frequency
Manufacturer Package Identifier
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Mount
Nominal Input Voltage
Nominal Output Voltage
Number of Circuits
Number of Outputs
Number of Pins
Number of Terminals
Output Configuration
Output Current
Output Type
Output Voltage
Packaging
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Switching Frequency
Synchronous Rectifier
Terminal Pitch
Topology
Width
Description
SOT-23-6
Compliant
90 %
1.3 mm
1.15 mm
Lead Free
3 mm
Production (Last Updated: 7 months ago)
24 V
85 °C
1.2 A
15 V
1.7 MHz
SOT26 (SC74R)
4.75 V
-25 °C
810 mV
Surface Mount
12 V
3.3 V
1
1
6
6
Positive
1.2 A
Adjustable
15 V
Tape & Reel (TR)
No
Yes
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
1.4 MHz
No
950 µm
Buck
1.6 mm
In Stock
Quantity
MOQ : 2
Per Unit Price
₹63.13
Total Price
₹126.27
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹126.27
₹126.27
10
₹43.93
₹439.26
25
₹43.96
₹1099.05
50
₹43.94
₹2197.21
100
₹40.00
₹3999.62
500
₹38.32
₹19159.59
1000
₹34.56
₹34560.54
