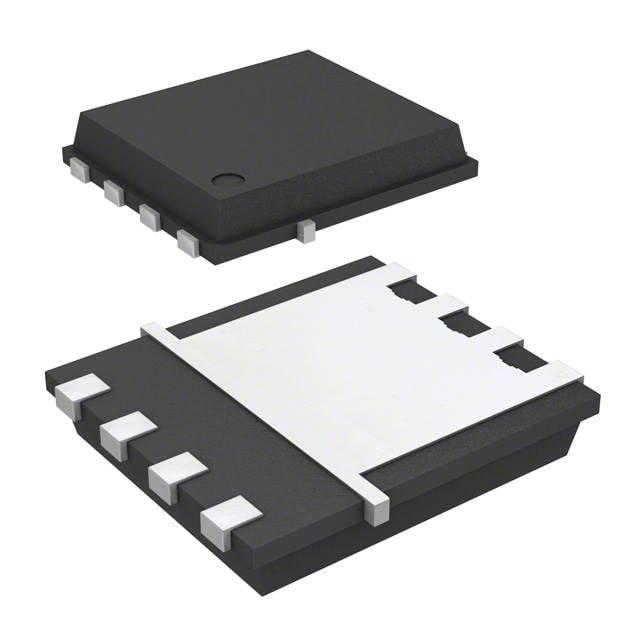

BSC070N10LS5ATMA1
Manufacturer
Infineon
Description
INFINEON - BSC070N10LS5ATMA1 - Power MOSFET, N Channel, 100 V, 79 A, 7000 ohm, TDSON, Surface Mount
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
100 V
14A (Ta), 79A (Tc)
4.5V, 10V
7mOhm @ 40A, 10V
2.3V @ 49µA
20 nC @ 4.5 V
±20V
2700 pF @ 50 V
2.5W (Ta), 83W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
PG-TDSON-8-7
8-PowerTDFN
₹173.85
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹173.85
₹173.85
10
₹140.96
₹1409.63
25
₹140.96
₹3524.07
50
₹121.65
₹6082.33
100
₹121.65
₹12164.66
500
₹114.44
₹57221.51
1000
₹105.34
₹105337.54
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
100 V
14A (Ta), 79A (Tc)
4.5V, 10V
7mOhm @ 40A, 10V
2.3V @ 49µA
20 nC @ 4.5 V
±20V
2700 pF @ 50 V
2.5W (Ta), 83W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
PG-TDSON-8-7
8-PowerTDFN
