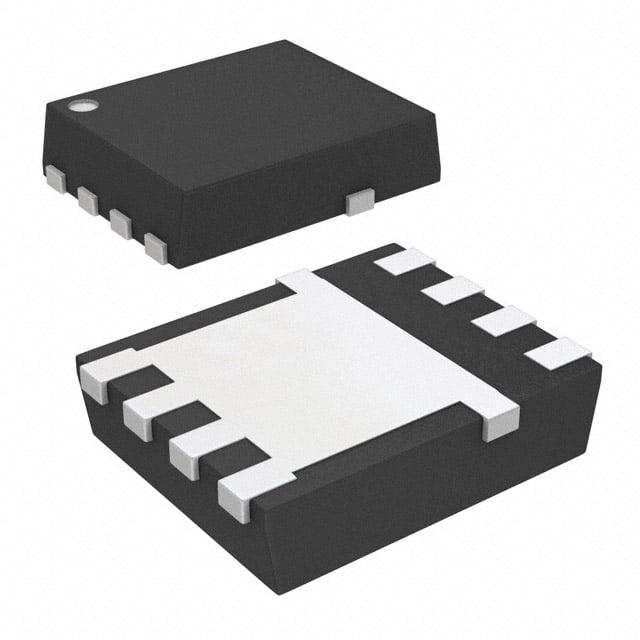

CSD16412Q5A
Manufacturer
Texas Instruments
Description
N-Channel 25 V 14A (Ta), 52A (Tc) 3W (Ta) Surface Mount 8-VSONP (5x6)
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
25 V
14A (Ta), 52A (Tc)
4.5V, 10V
11mOhm @ 10A, 10V
2.3V @ 250µA
3.8 nC @ 4.5 V
+16V, -12V
530 pF @ 12.5 V
3W (Ta)
-55°C ~ 150°C (TJ)
Surface Mount
8-VSONP (5x6)
8-PowerTDFN
₹166.56
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹166.56
₹166.56
10
₹105.04
₹1050.39
25
₹105.04
₹2625.96
50
₹105.04
₹5251.92
100
₹69.61
₹6960.76
500
₹54.32
₹27160.04
1000
₹49.34
₹49344.29
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
25 V
14A (Ta), 52A (Tc)
4.5V, 10V
11mOhm @ 10A, 10V
2.3V @ 250µA
3.8 nC @ 4.5 V
+16V, -12V
530 pF @ 12.5 V
3W (Ta)
-55°C ~ 150°C (TJ)
Surface Mount
8-VSONP (5x6)
8-PowerTDFN
