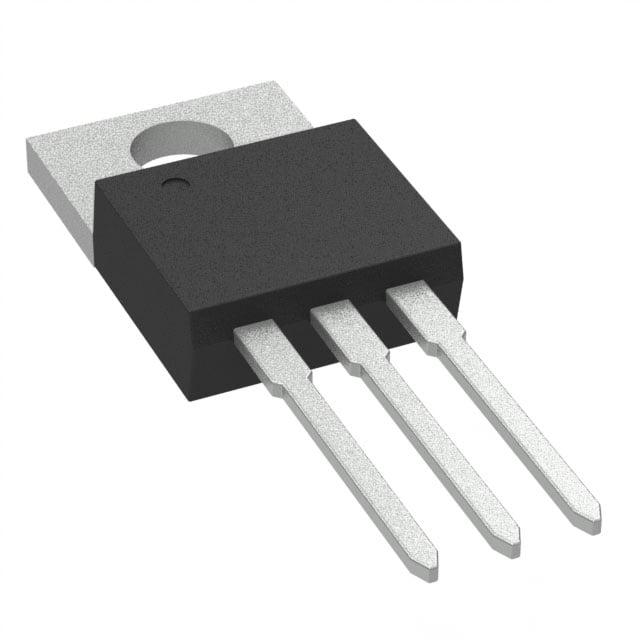

CSD18502KCS
Manufacturer
Texas Instruments
Description
TEXAS INSTRUMENTS - CSD18502KCS - Power MOSFET, N Channel, 40 V, 212 A, 2400 ohm, TO-220, Through Hole
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
40 V
100A (Tc)
4.5V, 10V
2.9mOhm @ 100A, 10V
2.1V @ 250µA
62 nC @ 10 V
±20V
4680 pF @ 20 V
259W (Tc)
-55°C ~ 175°C (TJ)
Through Hole
TO-220-3
TO-220-3
₹400.24
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹400.24
₹400.24
10
₹201.37
₹2013.66
25
₹201.37
₹5034.14
50
₹201.37
₹10068.29
100
₹180.24
₹18023.54
500
₹329.87
₹164934.52
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
40 V
100A (Tc)
4.5V, 10V
2.9mOhm @ 100A, 10V
2.1V @ 250µA
62 nC @ 10 V
±20V
4680 pF @ 20 V
259W (Tc)
-55°C ~ 175°C (TJ)
Through Hole
TO-220-3
TO-220-3
