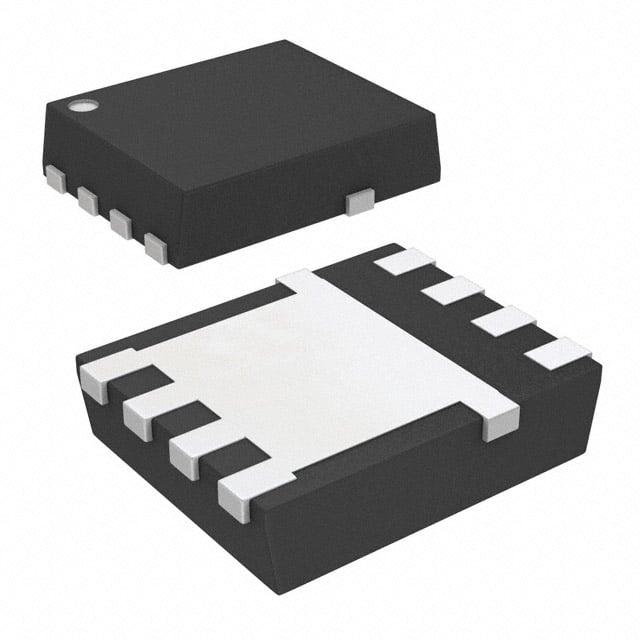

CSD18502Q5BT
Manufacturer
Texas Instruments
Description
N-Channel 40 V 100A (Ta) 3.2W (Ta), 156W (Tc) Surface Mount 8-VSON-CLIP (5x6)
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
40 V
100A (Ta)
4.5V, 10V
2.3mOhm @ 30A, 10V
2.2V @ 250µA
33 nC @ 4.5 V
±20V
5070 pF @ 20 V
3.2W (Ta), 156W (Tc)
-55°C ~ 150°C (TJ)
Surface Mount
8-VSON-CLIP (5x6)
8-PowerTDFN
₹510.57
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹510.57
₹510.57
10
₹335.81
₹3358.05
25
₹335.79
₹8394.67
50
₹335.79
₹16789.33
100
₹215.04
₹21503.92
500
₹194.32
₹97161.10
1000
₹186.09
₹186089.04
