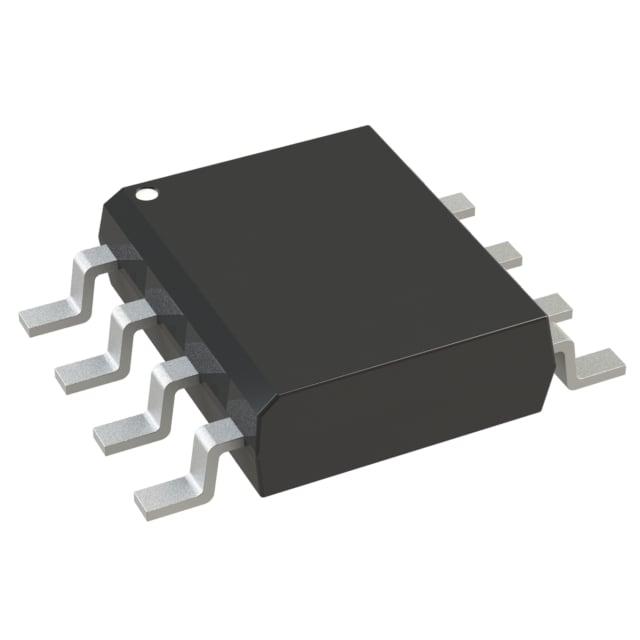

DMN4468LSS-13
Manufacturer
Diodes Incorporated
Description
N-Channel 30 V 10A (Ta) 1.52W (Ta) Surface Mount 8-SO
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
30 V
10A (Ta)
4.5V, 10V
14mOhm @ 11.6A, 10V
1.95V @ 250µA
18.85 nC @ 10 V
±20V
867 pF @ 10 V
1.52W (Ta)
-55°C ~ 150°C (TJ)
Surface Mount
8-SO
8-SOIC (0.154", 3.90mm Width)
₹111.72
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹111.72
₹111.72
10
₹69.29
₹692.90
25
₹57.81
₹1445.25
50
₹50.63
₹2531.75
100
₹44.57
₹4456.70
500
₹43.71
₹21857.43
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
N-Channel
MOSFET (Metal Oxide)
30 V
10A (Ta)
4.5V, 10V
14mOhm @ 11.6A, 10V
1.95V @ 250µA
18.85 nC @ 10 V
±20V
867 pF @ 10 V
1.52W (Ta)
-55°C ~ 150°C (TJ)
Surface Mount
8-SO
8-SOIC (0.154", 3.90mm Width)
