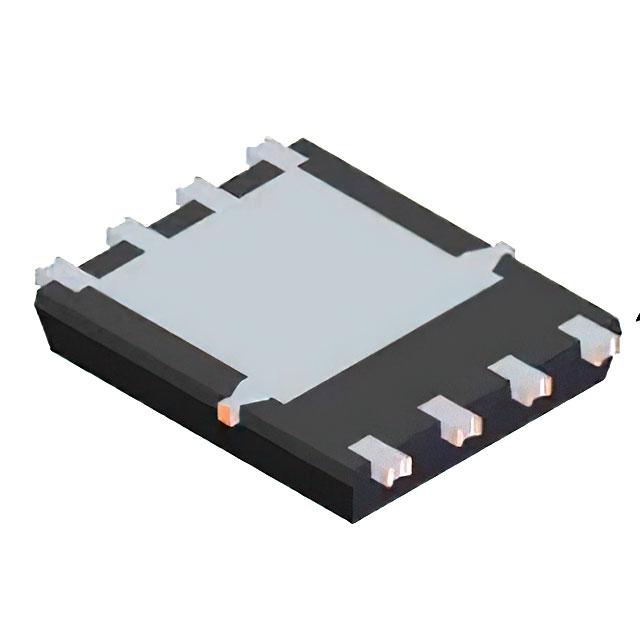

DMP4006SPSWQ-13
Manufacturer
Diodes Incorporated
Description
P-Channel 40 V 115A (Tc) 3.4W (Ta), 104W (Tc) Surface Mount, Wettable Flank PowerDI5060-8 (Type UX)
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Grade
Qualification
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
40 V
115A (Tc)
6V, 10V
5.2mOhm @ 9.8A, 10V
3V @ 250µA
162 nC @ 10 V
±20V
6855 pF @ 20 V
3.4W (Ta), 104W (Tc)
-55°C ~ 150°C (TJ)
Automotive
AEC-Q101
Surface Mount, Wettable Flank
PowerDI5060-8 (Type UX)
8-PowerTDFN
₹446.07
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹446.07
₹446.07
10
₹261.27
₹2612.75
25
₹261.28
₹6531.89
50
₹261.28
₹13063.76
100
₹200.10
₹20009.85
500
₹200.10
₹100049.25
1000
₹200.10
₹200098.50
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Grade
Qualification
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
40 V
115A (Tc)
6V, 10V
5.2mOhm @ 9.8A, 10V
3V @ 250µA
162 nC @ 10 V
±20V
6855 pF @ 20 V
3.4W (Ta), 104W (Tc)
-55°C ~ 150°C (TJ)
Automotive
AEC-Q101
Surface Mount, Wettable Flank
PowerDI5060-8 (Type UX)
8-PowerTDFN
