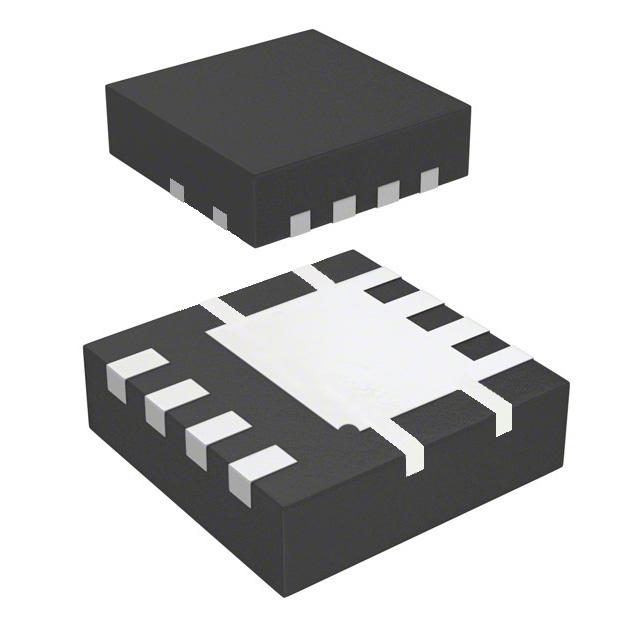

DMP6023LFG-13
Manufacturer
Diodes Incorporated
Description
P-Channel 60 V 7.7A (Ta) 1W (Ta) Surface Mount POWERDI3333-8
Datasheet
DownloadProduct Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
60 V
7.7A (Ta)
4.5V, 10V
25mOhm @ 5A, 10V
3V @ 250µA
53.1 nC @ 10 V
±20V
2569 pF @ 30 V
1W (Ta)
-55°C ~ 150°C (TJ)
Surface Mount
POWERDI3333-8
8-PowerVDFN
₹238.33
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹238.33
₹238.33
10
₹132.55
₹1325.46
25
₹131.16
₹3278.97
50
₹116.03
₹5801.50
100
₹98.14
₹9814.17
500
₹103.32
₹51657.95
1000
₹103.32
₹103316.93
Product Attributes
Type
Reference Type
Technology
Drain to Source Voltage (Vdss)
Continuous Collector Current
Drive Voltage (Max Rds On, Min Rds On)
Rds On Max
Vgs(th) (Max) @ Id
Max Charge Current
Vgs (Max)
Input Capacitance (Ciss) (Max) @ Vds
Max Power Dissipation
Max Operating Temperature
Mounting Type
Packaging
Case/Package
Description
P-Channel
MOSFET (Metal Oxide)
60 V
7.7A (Ta)
4.5V, 10V
25mOhm @ 5A, 10V
3V @ 250µA
53.1 nC @ 10 V
±20V
2569 pF @ 30 V
1W (Ta)
-55°C ~ 150°C (TJ)
Surface Mount
POWERDI3333-8
8-PowerVDFN
