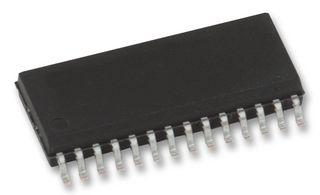

FAN7389MX1
Manufacturer
onsemi
Description
Driver 600V 0.65A 6-OUT Hi/Lo Side Half Brdg Non-Inv 28-Pin SOIC W T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Fall Time
Height - Seated (Max)
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Circuits
Number of Drivers
Number of Outputs
Number of Pins
Number of Terminals
Operating Supply Voltage
Output Current
Power Dissipation
Propagation Delay
REACH SVHC
Rise Time
RoHS
Terminal Pitch
Weight
Width
Description
SOIC
Compliant
30 ns
2.65 mm
Lead Free
17.9 mm
NRND (Last Updated: 4 years ago)
ACTIVE, NOT REC (Last Updated: 4 years ago)
125 °C
650 mA
1.4 W
20 V
-40 °C
10 V
Surface Mount
400 µA
1
3
3
28
24
15 V
650 mA
1.4 W
650 ns
Yes
50 ns
Compliant
1.27 mm
1.206 g
7.5 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹269.07
Total Price
₹269.07
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹269.07
₹269.07
10
₹253.90
₹2538.97
25
₹245.50
₹6137.47
50
₹245.50
₹12274.93
100
₹201.05
₹20105.34
500
₹171.42
₹85711.90
